For an object moving along with constant speed v, the graph is just a horizontal line at height v above the axis. You already know that s, the distance travelled, is speed multiplied by time, vt; but on your graph v x t is the AREA of the shaded block of height v and length t.
What are the 4 types of speed time graphs?
Visualization of Speed – Time Graphs
Time graph for constant speed.Speed-Time graph with constant acceleration.Speed-time graph with increasing acceleration.
What is a time graph?
A distance-time graph shows how the distance and speed of an object changes with time. This graph shows the movement of three objects over time. The slope, or steepness, of each line indicates the object’s rate of speed. In general, the steeper the slope, the faster the object’s speed.
What is the difference between speed time graph and velocity-time graph?
Speed-time graphs show speed on the vertical axis and time on the horizontal axis. Metres per second per second can be written as m / s 2 or m s − 2 . A negative gradient shows the rate of “slowing down” or deceleration. Velocity-time graphs show velocity on the vertical axis.
How do you calculate speed?
Speed tells us how fast something or someone is travelling. You can find the average speed of an object if you know the distance travelled and the time it took. The formula for speed is speed = distance ÷ time.
What is the slope of a speed vs time graph?
The slope of a speed-time graph indicates the rate of change of speed of the body and it is the acceleration.
What is the area of a speed time graph?
It has been learned in this lesson that the area bounded by the line and the axes of a velocity-time graph is equal to the displacement of an object during that particular time period. The area can be identified as a rectangle, triangle, or trapezoid.
How many types of speed time graphs are there?
There are three types of speed–time graphs for a body. Speed-time graph when the speed remains constant. Speed-time graph when the speed changes at uniform rate. Speed-time graph when the speed changes at a non-uniform rate.
What are the axis on a speed time graph?
A speed–time graph measures time along the -axis, or the horizontal axis, and speed along the -axis, or the vertical axis.
What is the flat line of a speed time graph?

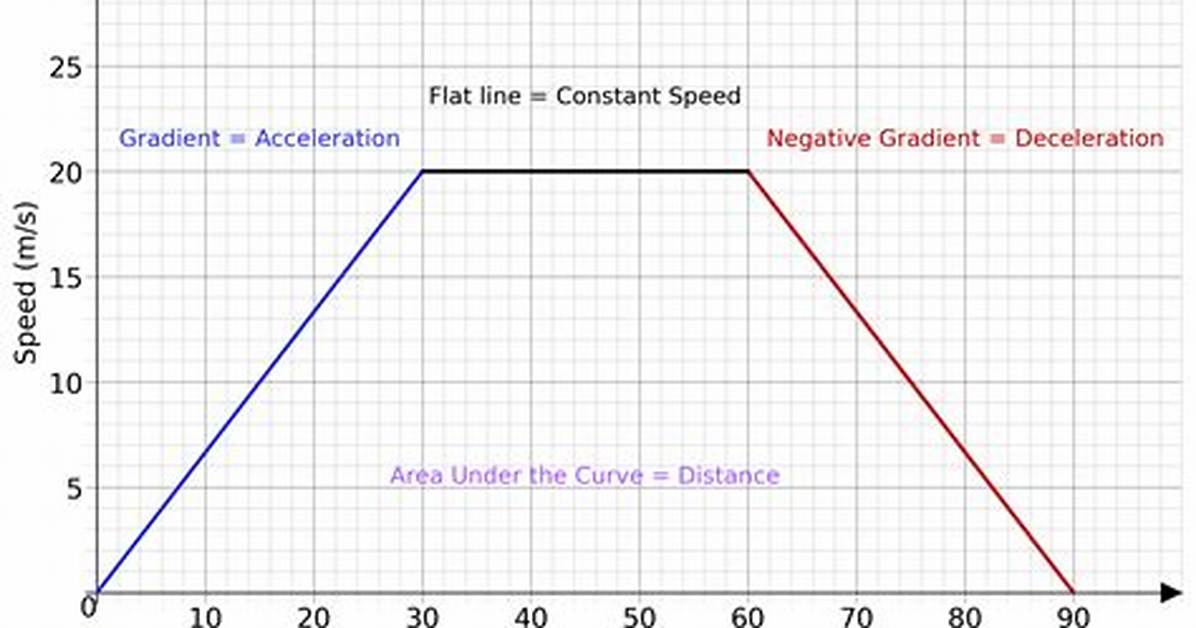

A horizontal line on a speed-time graph represents a steady speed. This can also be called a constant or uniform speed. A sloping line on a speed-time graph represents an acceleration . The sloping line shows that the speed of the object is changing.
What is acceleration time graph?
What is Acceleration-Time Graph? Acceleration-Time Graph shows the acceleration plotted against time for a particle moving in a straight line. The acceleration-time plots acceleration values on the y-axis and time values on the x-axis.
What’s a distance time graph?
Distance-time graphs show how the distance travelled by a moving object changes with time.
What’s another name for a speed-time graph?
Velocity-time graphs are also called speed-time graphs. The vertical axis of a velocity-time graph is the velocity of the object. The horizontal axis is the time from the start.
What is the difference between speed-time and velocity-time graph in what condition they are similar?
Speed-time graph shows the variation of speed of a body w.r.t. time. This kind of graph do not consider direction of the motion i.e. it only takes the straight line motion in the same direction. Velocity is a vector quantity i.e. it has both magnitude as well as direction. It can be positive, negative and zero.
