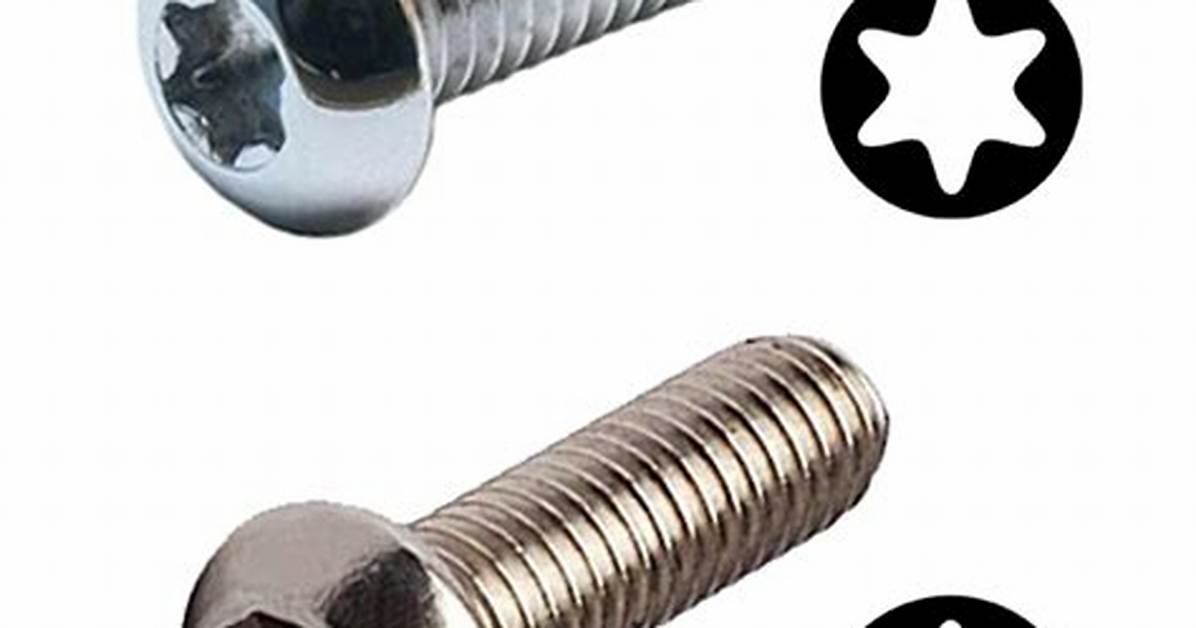

Torx Drive
A key advantage of the Torx system is that is allows higher torque transmission than other drive systems enabling fastenings to be tighter and therefore more secure. The straight sides of the Torx six sided star shaped socket helps prevent camout and require lower end-load than cruciform systems.
Is there a difference between star and Torx?
The difference between Torx Bits vs Star Bits is that Torx is the trademark name, while star represents the generic descriptor – the terms can be used interchangeably, as the tools are identical.
Is Torx better than hex?
In order for a hex head to work and not strip out it requires quite a bit more depth for the head, the torx requires about 30 to 50% less depth. So they are well suited to applications that require a thinner bolt head to prevent clearance issues. This is the primary reason they are used as rotor bolts.
Is hex the same as Torx?
However, Torx keys have a six-pointed star-like shape, instead of the six flat sides of a hex key. Unlike hex keys, which usually have a hexagonal cross-section along their entire length, Torx keys frequently have a circular cross-section, with the Torx shape only appearing at the ends of the tool.
What does a Torx look like?
Torx (pronounced /tɔːrks/) is a trademark for a type of screw drive characterized by a 6-point star-shaped pattern, developed in 1967 by Camcar Textron. A popular generic name for the drive is star, as in star screwdriver or star bits.
Are Torx better than Phillips?
Phillips head screws were purposely designed to cam-out to prevent over-tightening. Torx heads were designed to resist cam-out, thereby offering improved torque transfer between the driver and the fastener. This feature also reduces wear on driver bits.
How do you unscrew a Torx screw without Torx?
Use a plastic toothbrush. Similar to its use on both Phillips and flat head screws, a plastic toothbrush can also be used to remove a Torx screw. … Break out the pin for security Torx screws.
Can you use an Allen key instead of Torx?
Originally Answered: What can you use instead of a Torx screwdriver? Sometimes an allen key will work, or even a flat blade screwdriver if it will jam between opposite points in the recess. Either way, be ready to replace the screw and/or the tool used because of damage. Your best bet is just to get a Torx key.
What is the most common Torx size?
The most common Torx screws are T6, T8, T10, T15, T20, T25 and T30. All Chapman Star driver sets contain the bits to drive those screws. Coming in close second to the most common sizes are T27 and T40 Torx screws, and Chapman’s larger Star bit sets contain those drivers.
Are Torx metric or SAE?
Torx ” DRIVE”
The thread on a Torx drive screw head can be either metric or fractional.
Why is an Allen wrench called an Allen wrench?
Hex keys are also known as Allen wrenches. In the early 1900s, the Connecticut-based Allen Manufacturing Company launched its own branded hex key, naming it the “Allen wrench.” Today, hex keys are often referred to as Allen wrenches.
What is the difference between an Allen wrench and a hex key?
This article is aimed to help you figure out the difference between an Allen wrench and a hex key. The short answer is “there is no difference”. Really, these two names can be used interchangeably.
How do you measure Torx size?
Line up the ruler on the star-shaped screw tip to measure from one point to the point directly opposite.Examine the markings on the ruler and write them down.Compare the measurement with the “P to P” (point to point) column of the first chart on the Wiha website to determine your Torx bit’s exact T-size.
