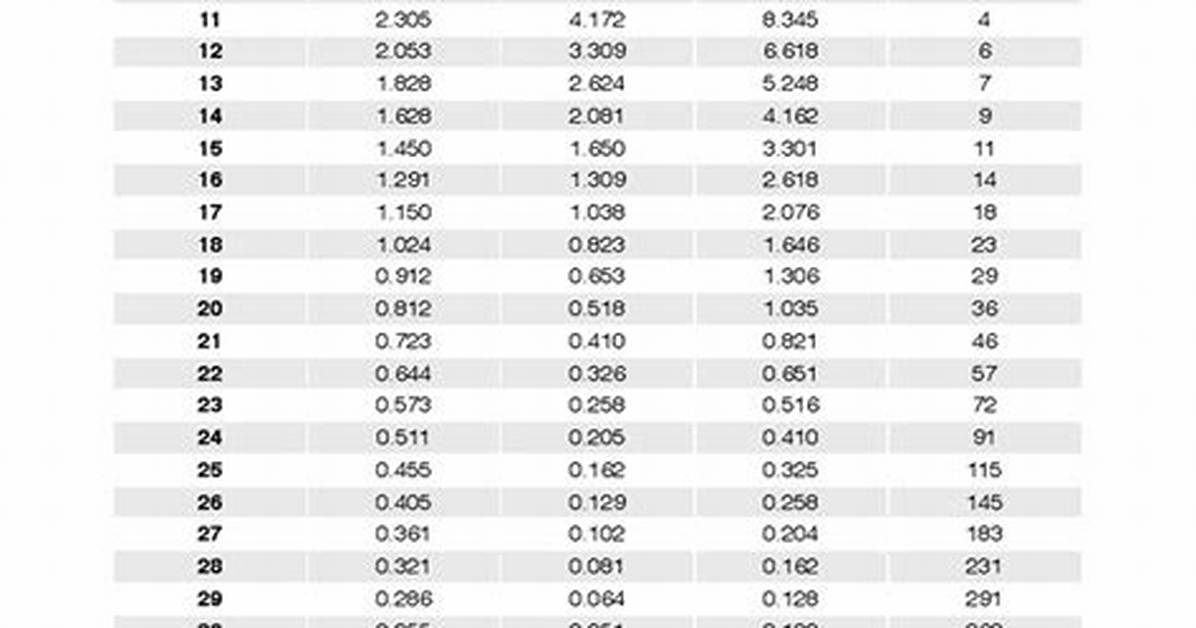

AWG (Americal Wire Gauge) = Actual Cross Section in mm² and Conductor Resistance. AWG is shown below with its exact equivalent value in mm² and diameter (mm).

How is AWG calculated?

AWG: In the American Wire Gauge (AWG) system, wire size diameters can be calculated by applying the formula D(AWG)=. 005·92((36-AWG)/39) inch. For the 00, 000, 0000 etc.

What is the difference between 1 0 and 1 AWG?

There is a difference, 1/O is one wire size larger.

What size wire is needed for 50 amps?

50 AMP Wire Size

For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances. However, a kitchen oven can alone require 50 amps. Many electric dryers also require a 50 amp breaker.

Can 12 AWG handle 30 amps?

Can You Use a 30-Amp Breaker on 12-Gauge Wire? You should not use a 30-amp circuit breaker on a 12-gauge wire. The circuit breaker installed on a circuit is of a specific size to protect a certain wire gauge. A larger breaker on a thinner wire will allow more current over the wire before tripping.

Is higher AWG better?

In general, a lower AWG number is better than higher AWG. AWG is of primary importance for wires that will carry electrical power — for example, home or business electrical wiring, extension cords or high-power wire in automotive or audio use.

Which is better 23AWG vs 24AWG?

23AWG is recommended for PowerOverEthernet. American Wire Gauge uses smaller numbers to indicate a longer diameter. The larger the diameter, the less resistance in the wire as there is more space for electrons to fit. So, in respect to PoE, 23AWG is thicker than 24AWG, so therefore better for electron flow.

What size wire can handle 30 amps?

“Twelve-gauge wire is good for 20 amps, 10-gauge wire is good for 30 amps, 8-gauge is good for 40 amps, and 6-gauge is good for 55 amps,” and “The circuit breaker or fuse is always sized to protect the conductor [wire].”

What wire is needed for 220v 30 amp?

In short, the perfect wire size for most 30 amp services is #8 AWG wire with 50A ampacity. This is the common size wire for 30 amps 240 volt service, 30 amp 220 volt service, and so on.

What size wire do I need for 100 amps?

Size Wire for 100 Amp Service

Wiring a 100 amp breaker panel requires either #4 copper wiring or #2 aluminum or copper-clad wiring.

How far can you run 10 gauge wire for 30 amps?

10-gauge wire can accommodate a 30-amp breaker until you reach 150 feet. At 150 feet or more, you should get 8AWG or 6AWG wire.

How many amps can 1 0 AWG wire handle?

1/0 Gauge (AWG) Battery Cable is designed for higher power applications and can comfortably handle 300 amps at a cable length of 8 feet. The outside diameter of the cable is aproximately 0.550 inches.

What size wire do I need for 200 amp service?

The Short Answer: Like with aluminum, you’ll need a #4/0 copper-clad aluminum wire for a 200 amp service.

What is bigger 2 0 or 2 AWG?

2 AWG will handle around 94 Amps, while 2/0 AWG will handle around 190 Amps. The length of the wire must be considered as well as the % voltage drop in order for this to be true.

How far can you run 8 gauge wire for 40 amps?

But even with all these considerations, the wire’s amp rating won’t change. An 8AWG cable will carry 40-55A regardless of whether the distance is 10 feet or 100 feet.

What wire is needed for 220V 60 amp?

60 amp wire size is either 6 AWG or 4 AWG wire (AWG stands for American Wire Gauge; standard wire sizing is the US) for 220V voltage. An amateur will use a 6 AWG wire size for 60 amp 220V. A professional will always use 4 AWG wire size for 60 amp 220V.

What size wire do I need for 30 amps at 200 feet?

A 4 AWG wire is ideal for conducting 30 amps of current over 200 feet.
