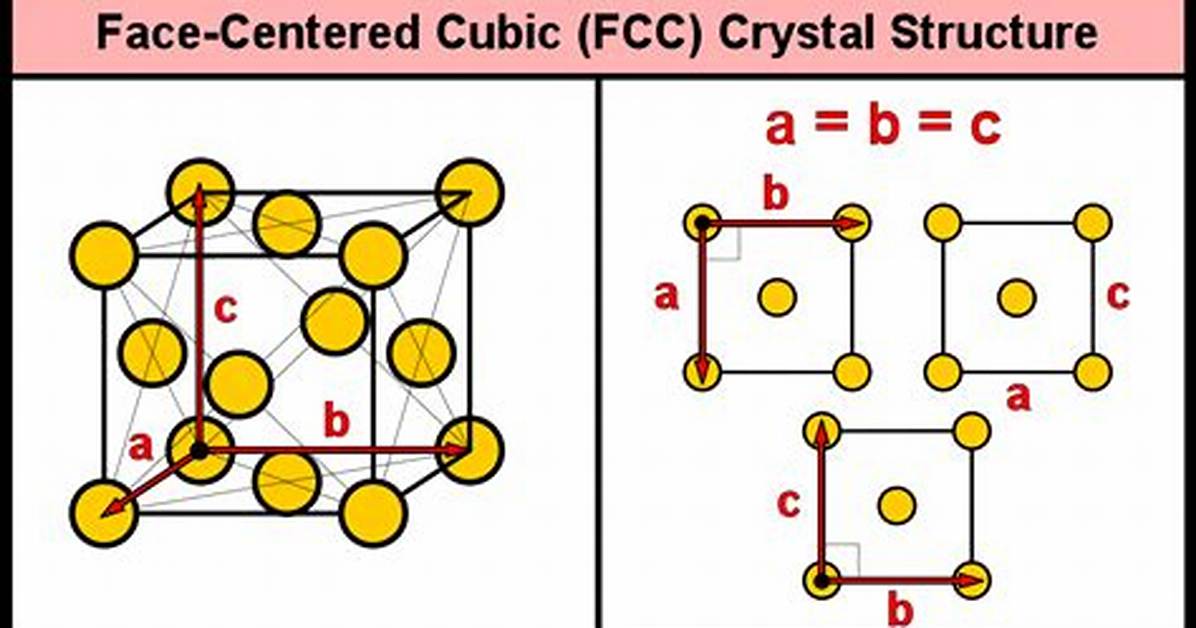

Face-centered cubic (FCC or cF) is the name given to a type of atom arrangement found in nature. A face-centered cubic unit cell structure consists of atoms arranged in a cube where each corner of the cube has a fraction of an atom with six additional full atoms positioned at the center of each cube face.
What is a face-centered cubic solid?
7:A face-centered cubic solid has atoms at the corners and, as the name implies, at the centers of the faces of its unit cells. Atoms in an FCC arrangement are packed as closely together as possible, with atoms occupying 74% of the volume. This structure is also called cubic closest packing (CCP).
Is FCC cubic?
FCC (face centered cubic): Atoms are arranged at the corners and center of each cube face of the cell. Atoms are assumed to touch along face diagonals. 4 atoms in one unit cell. Atoms are arranged at the corners of the cube with another atom at the cube center.
Is FCC and CCP the same?
Face Centered Cubic (fcc) or Cubic Close Packed (ccp) These are two different names for the same lattice. We can think of this cell as being made by inserting another atom into each face of the simple cubic lattice – hence the “face centered cubic” name.
What does BCC and FCC reveal?
BCC – Body Centred Cubic – and FCC – Face Centred Cubic – are descriptions of the arrangement of atoms in crystal structures. Most metal and alloys are crystalline, which means that their atoms arrange themselves in an ordered pattern.
What is face centered?
Definition of face-centered
: relating to or being a crystal space lattice in which each cubic unit cell has an atom at the center and at the corners of each face — compare body-centered.
What is radius of face-centered cubic?
The relation between edge length (a) and radius of atom (r) for FCC lattice is √(2a) = 4r .
How many atoms are in a BCC?
The BCC unit cell consists of a net total of two atoms, the one in the center and eight eighths from the corners.
What is a simple cubic lattice?
The simple cubic lattice is a cube with an atom on each corner. Using the hard sphere model, which imagines each atom as a discrete sphere, the SC crystal has each atom touch along the edge of the cube.
What is cubic void?
This type of void is formed between 8 closely packed spheres which occupy all the eight corner of cube. The void formed in AAA type packing i.e when the centre of the sphere are joined together it leads to the formation of cube. Void formed in the cubical arrangement is cubical void.
How many lattice points are in a face-centered cubic?
Watch as atoms divide to give a total of 2 lattice points in the Body Centred Cubic (BCC) unit cell and 4 lattice points in the Face Centred Cubic (FCC) unit cell.
Is carbon steel FCC or BCC?
Carbon is added (about 1% by weight) to iron to make “carbon steel”, which is a very hard material. Carbon is rather soluble in the FCC phase of iron, but not in the BCC phase.
Does BCC have close-packed planes?
BCC structures have no close packed planes. Its coordination number is just the number of equidistant neighbors from the atom in the center of the unit cell.
Is brass A FCC?
Brass, Cartridge Brass, Muntz Metal
At room temperature cartridge brass is a single phase substitutional solid solution of zinc in the fcc copper structure.
