Electrical boxes, also known as junction boxes, enclose wire connections. They help protect against short circuits, which can cause fires.
How do you replace a ceiling electrical box?
Turn off the breaker inside the main electrical panel that supplies electricity to the ceiling electrical box. Go into the attic and located the ceiling box you want to replace. Remove the box from the ceiling. Install a plastic replacement ceiling box that’s rated for 50 pounds.
What kind of box do I need for a ceiling light?
Fan-rated electrical boxes are meant to hold ceiling lights with a substantial amount of weight. They do sell other types of boxes for ceiling lights, but Heath recommends always installing fan-rated, metal boxes so that any type of ceiling light can always be safely installed at that location.
Are electrical junction boxes legal?
Yes any concealed box is a code violation. All splices must be accessable. Now practically speaking if the splice is made properly with wire nuts and the cables properly clamped in the box, you can cover it without concern.
How do you install an electrical box on a wall light fixture?
Step 1: Trace Box. For your safety, turn off power before starting this project. Step 2: Cut Hole. Cut the hole with a drywall saw. Step 3: Thread Cables. Run cable through the hole. Step 4: Insert Box. Push the box into the hole. Step 5: Secure Box to Wall.
What is the difference between junction box and utility box?
A utility box can also be called an electrical box and it would be composed of switches, electrical sockets, and also fixtures. The major difference between a junction box and a utility box is that a junction box would house the electrical connections while the utility boxes are used to install switches, fixtures, etc.

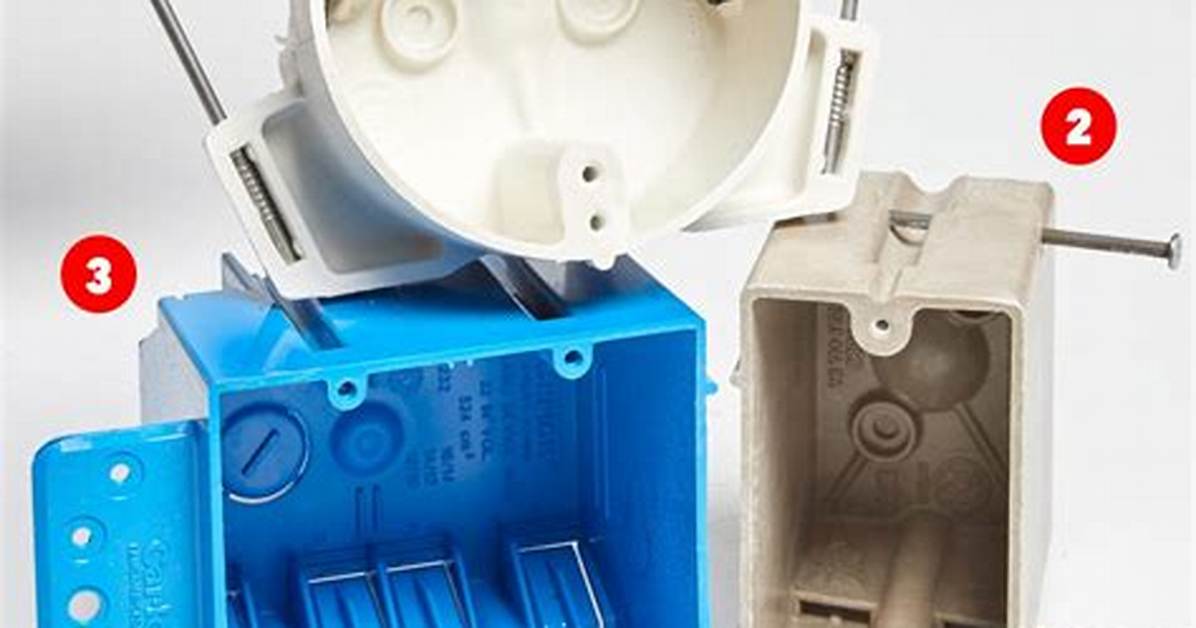

What are the different types of electrical boxes?
Two-gang, three-gang, and four-gang boxes
These three types fit electrical outlets and electrical switches, but they’ve been oversized to hold up to four devices simultaneously. They can also be found in various old-work and new-work styles.
What is electrical utility box?
Definitions. Utility boxes are above-ground structures that house electrical transformers, electrical switches, cable TV, communication or telephone connections and wiring, and other electrical connections required to distribute a utility service from a main line to individual buildings.
How do you remove an old ceiling light box?
Turn the screws counterclockwise with a screwdriver or a drill to remove them from a box attached to a board between the ceiling joists. Pull the box from the ceiling. As you pull the box from the ceiling, carefully remove the electrical wires from the box.
How are ceiling electrical boxes attached?
Boxes can be mounted directly (with four screws) to a ceiling joist or wood blocking, or they can attach to adjustable braces spanning between ceiling joists.
How do you install an electrical box without a ceiling stud?
Here’s how to install an electrical box without a stud using a winged remodel box:
Trace the outline of the box onto the wall.Use a keyhole or drywall saw to cut out the shape.Thread the cables into the box and secure them.Push the box into the hole and ensure everything is snug how we like it!
How much weight can a ceiling electrical box hold?
Weight limits: fans and fixtures are supported independent of outlet box. Mounting screws go through box and into joist. Box will support up to 70 lbs. for fans and 90 lbs.
How do I choose a junction box?
It must have sufficient room to house electrical wires, connectors and fixtures such as receptacles, light switches and dimmers. Therefore, you’ll want to start by measuring the depth you need for an enclosure. The deeper the box, the more it can accommodate all the components.
Can I hide a junction box?
To conceal the junction box, the electrician or builder often adds drywall up to the sides of the box but leaves the front panel door open. This way, the box does not jut out from the wall.
Are electrical junction boxes safe?
Electrical connections made improperly can be vulnerable to sparking and creating a fire. If the connected wires become loose, arcing/sparks between the wires becomes likely. If the connection is inside a junction box, the risk of a house fire is substantially low.
How can I extend my electrical wire without a junction box?
There are many ways you can splice wires together. In some cases, you may simply use a few wire caps. In other cases, you may try to solder them together. You might use a wire cap or nut if you are working with smaller wires; however, you may decide to use a butt splice if you are working with larger wires.
