Height Regulations & Children’s Safety
In domestic and residential areas, railings on outdoor roofs and balconies must be at least 1.1 metres high. Any railing used on stairs or balconies must have gaps of under 99mm in all directions so that children can’t pass between them.
What is the height of a railing?
The current ADA standards dictate that the top of Handrails gripping surfaces shall be 34 inches minimum and 38 inches maximum measured vertically above walking surfaces, stair nosings, and ramp surfaces with a greater than a 1:20 slope.
What height do you need a balustrade NSW?
The balustrade or barrier must be a minimum of 865mm in height above the floor level of stairways, ramps and short transitional landings (500mm or less). These minimum balustrade height requirements clearly reflect the need to reduce the risk of falling over the top of a barrier.

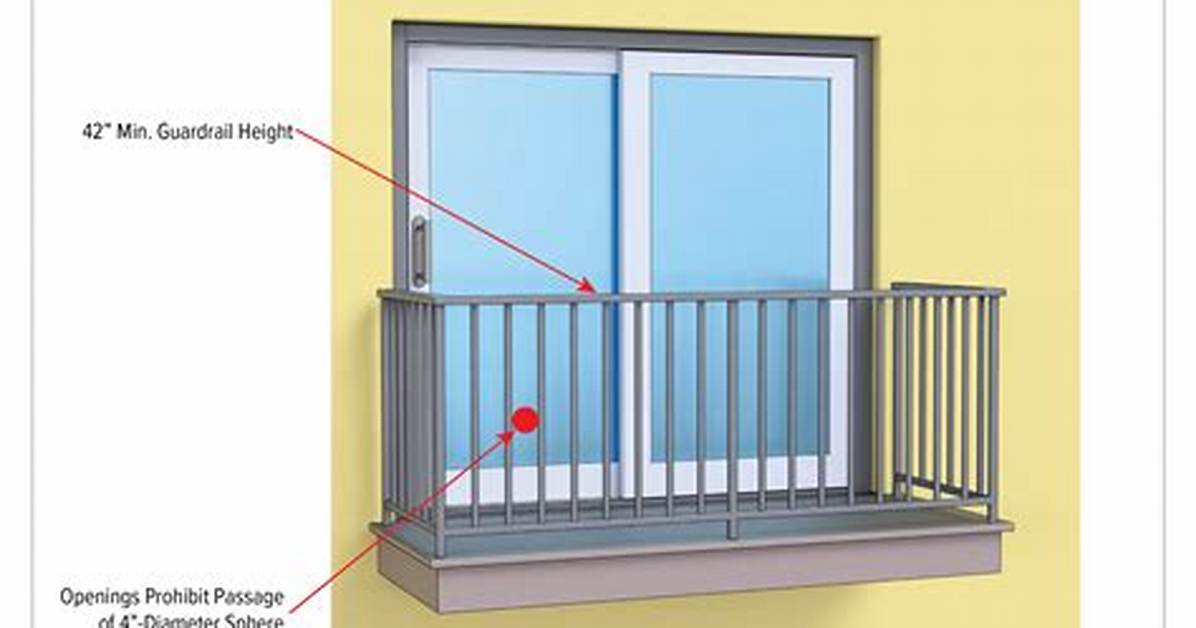

What is the legal height of a balcony railing?
The balustrading must be continuous for every flight of stairs and must have at least 1 handrail positioned between 865 and 1000mm above the nosings of the stairs.
What is the vertical height of stair railing?
§1910.23(e)(2) A stair railing shall be of construction similar to a standard railing but the vertical height shall be not more than 34 inches nor less than 30 inches from upper surface of top rail to surface of tread in line with face of riser at forward edge of tread.
How thick is a railing?
In most cases, framed glass railings must be at least ¼” (6mm) thick, however, this standard can vary based on region and where the railing is located. For example, glass railing systems for stairs tend to have higher requirements.
How tall is the average stair?
The standard stair height for American architects is 7.5 inches. Outside steps have an average length of 11 inches tall, while inside steps have an average length of 9 inches tall.
How high does a balcony railing have to be NSW?
All veranda’s, decking, balconies and any internal void area railings must be a minimum height of 1 meter high for compliance with the most recent Australian Standards If under 1 meter this is a safety hazard.
Can you build a balcony on your house?
In short, yes, you will need planning permission. The UK Government has excellent planning guidance on their website and your local council can also provide further guidance. Key things to consider include: Neighbours: Frustratingly for anyone living nearby, balconies can let you see into their gardens.
What is the Australian standard for handrails?
Handrail height for stairs according to the Australian standards is the height of a handrail above the floor or the nosing of a stair tread, shall be no less than 865mm. On a landing where fall from height is significant the height of the guardrail must be at least 1000 mm.
Are concrete balconies safe?
It’s important to note that a small rock sized piece of concrete can kill or injure people below. In addition to concrete, railings keep tenants and items placed in the space safe and secure. The concentration of reinforcing steel is heaviest at the balcony perimeter. This is also the area where railings are installed.
How high should balustrades be UK?
The centre line of all handrails should be between 900mm and 975mm above the stair or ramp pitch line. For balustrades guarding landing areas and balconies the barrier should be a minimum of 1100mm above FFL, while centreline of the handrail should be between 900mm and 1100mm above Finished Floor Level (FFL).
What is the maximum gap between balustrades?
All balustrades must have no gaps over 100mm either between uprights or under bottom rails etc. Horizontal gaps between slats etc (such as Safa-Slat style) must be less than 15mm to avoid being used as a toe hold.
What is the standard height of an outdoor stair railing?
Deck stair railing should measure at least 34 inches high.
The IRC specifies that deck stair railing should measure between 34 and 38 inches high, so homeowners may wish to use railing that is even higher than 34 inches for their deck stairs.
How high should handrails be UK?
UK Regulations for Handrails & Balustrades
In all the buildings handrail height should be between 900mm and 1000mm measured from the top of the handrail to the pitch line.
Do you need planning permission for a balcony UK?
Please note that if you want to build a veranda, balcony, decking area or raised platform in the grounds of a flat then planning permission will always be required. In addition if a building to which it relates is a listed building, then both planning permission and listed building consent would be required.
What height should a banister rail be?
You should fit a handrail at a height between 900mm and 1000mm from the pitch line of the stairs, or the floor for landings. This is approximately 35.4–39 inches. Staircases require at least one handrail: If the stairs are less than 1m wide: provide a handrail on one or both sides.
What height should a newel post be UK?
The handrail should set 900mm above the pitch line where the post meets the string. The top of the post should be 50mm above this.
