Standard Stair Dimensions

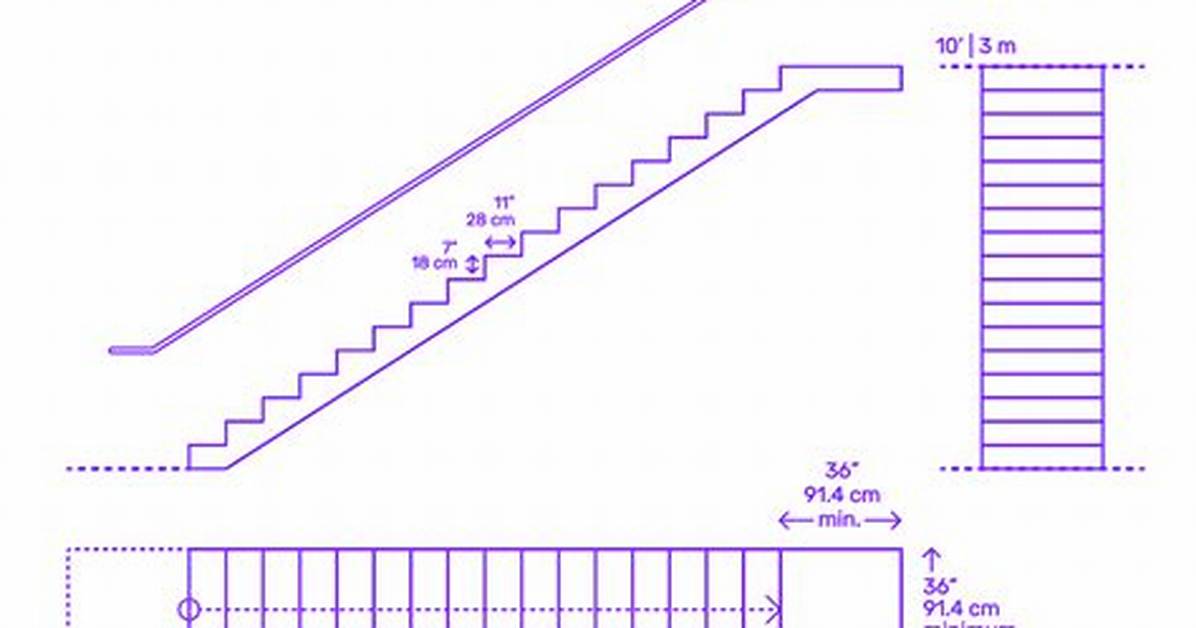

Standard straight-run stairs have dimensions of a stair width of 36 inches or 91.4 centimeters, a stair tread depth of 11 inches or 28 centimeters, a stair riser size of 7 inches or 18 centimeters, and a length from the bottom to the top of the stairs of 10 feet or 3 meters.
How many steps is 11 feet?
How many stairs in 11 feet hight:– As per thumb rule and various building code or IRC, assume standard design, for 11 feet height of ceiling or floor, you will need approximately 19 stairs or steps or riser, 19 number of tread or going and on average 13 feet of stringer to go up.
How many steps is 8 foot rise?
Divide the vertical distance by typical riser height, normally 8-inches -or your preferred riser height. For example, a total rise of 8-feet, 5 -inches (102-inches) divided by 8-inches would work out to 12.75 steps.
What is the formula to build stairs?
You divide the height by 7 inches; if, say, the floor-to-floor distance is 8 feet, 10 inches (or 106 inches), then you’ll need 15 treads (106 divided by 7 equals 15.14). Next, you divide the height by the number of treads (15 into 106), producing the exact tread height (7.06 inches).
How many stairs before a landing is required?
ADA Stair Landings
– A landing is required every 12′ of vertical stairway rise.
How long of a 2×12 do I need for stairs?
How to Use the EZ Stair Calculator. We suggest 10.5″ for 2×12 or 2 – 2×6 Treads. Treads may be cut to suit other widths.
How long do stairs need to be to go up 10 feet?
For most homes, the length of a flight of stairs is between 9 and 12 feet long. The total length of a flight of stairs for an 8-foot ceiling is approximately 9-feet long. The total length of a flight of stairs for a 10-foot ceiling is approximately 12-feet long.
How do you calculate space for stairs?
Measure the distance from the floor at the bottom of the stair location to the floor at the top of the stair location. Divide the total rise by the estimated unit rise height. Divide the total rise by the total number of risers. Multiply the number of risers by the width of your pre-selected treads.
How many stairs do I need for 9 foot ceilings?
A flight of stairs in a home with 9′ ceilings requires 16 steps. If each tread is 11” deep, then the total length of the staircase will be 176”. A tread depth of 10” will result in a minimum length of 160”.
What is the depth of stairs?
International Residential Code (IRC)
There are also section codes in place for standard stair tread dimensions. The tread depth code for residential stairs should be no less than 10 inches with nosing, no less than 11 inches without nosing, and maximum tread depth variation should also be less than 3/8 of an inch.
How deep should steps be?
Staircase Tread (Run) Depth: 10 to 11 Inches, Minimum
The tread depth is the distance from the front edge, or nosing (a tread projection that overhangs the riser below), of one step to the front edge or nose of the next step, measured horizontally. This distance must be at least 10 inches.
Are stairs 45 degrees?
For most standard stairs, the stair angle varies between 30 degrees and 45 degrees. Egress stairs have a shallower angle around 30-35 degrees while industrial stairs have steeper angles ranging from 40 to 70 degrees.
What is the Australian standard for steps?
The Australian standards for stairs and landings state that you can use a maximum of 18 stairs (risers) in a single flight. Flights can be connected using landings. A barrier, a landing 2+ metres in length or a change in the direction of the stairway of 90+ degrees needs to take place every 36 stairs.
What is the standard width of indoor stairs?
The IRC stairs code states that, to comply with stairway requirements, the minimum width for residential stairs be no less than 36 inches. The stair riser code is up to 7.75 inches, and can not vary more than 3/8 of an inch. There are also section codes in place for standard stair tread dimensions.
What is a standard step height Australia?
Riser Height
In Australia, riser heights should be uniform across the flight and should fall between 150mm and 180mm. The nosing of each tread should generally not extend more than 30mm beyond the riser.
