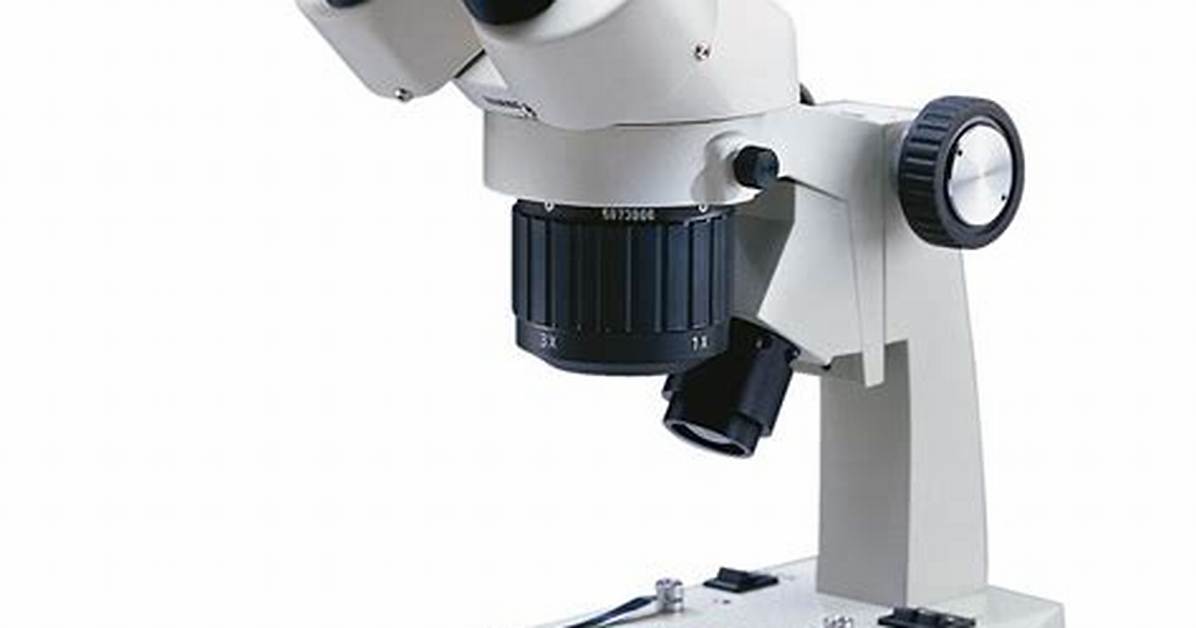

A stereomicroscope, sometimes called a dissecting microscope or a binocular inspection microscope, is a low-power compound instrument used for a closer examination of three-dimensional specimens than is possible with a hand lens (Figure 1).
What type of microscope is a stereoscopic?
A stereo microscope is a type of optical microscope that allows the user to see a three-dimensional view of a specimen. Otherwise known as a dissecting microscope or stereo zoom microscope, the stereo microscope differs from the compound light microscope by having separate objective lenses and eyepieces.
What is a stereoscopic image in microscope?
Binocular stereomicroscopes are a matched pair of microscopes mounted side by side with a small angle between the optical axes. The object is imaged independently to each eye, and the stereoscopic effect, which permits discrimination of relief on the object, is retained.
What are the two main benefits of using a stereomicroscope?
The main advantages of stereo microscopes are that they can examine opaque specimens and provide a 3-D view of the sample. They also offer a large working distance allowing users to manipulate the specimens viewed by the scope.
What is the difference between a light microscope and a stereomicroscope?
One of the main differences between stereo and compound microscopes is the fact that compound microscopes have much higher optical resolution with magnification ranging from about 40x to 1,000x. Stereo microscopes have lower optical resolution power where the magnification typically ranges between 6x and 50x.
What is the stereoscopic process?
Stereoscopy, sometimes called stereoscopic imaging, is a technique used to enable a three-dimensional effect, adding an illusion of depth to a flat image. Stereopsis, commonly (if imprecisely) known as depth perception, is the visual perception of differential distances among objects in one’s line of sight.
What are the limitations of stereo microscope?
Disadvantages of Dissecting microscope (Stereo microscope)
Generally, the microscope is costly to purchase. They have a low magnification power hence they are not able to view images of high magnification, above 100x hence they cant be used to view tissue structures and other structures.
How many lenses does a stereo microscope have?
Generally the magnification of a stereoscope is between 20x and 50x, and specimens are lighted from above. The three-dimensional image is produced by TWO objective lenses, plus the eyepieces.
Can you see cells with a stereoscopic microscope?
A stereo microscope provides two optical paths for each eye resulting in a three-dimensional view. A compound microscope helps to look at samples under magnifications as high as 40x to 1000x or more. Examples include the viewing of animal or plant cells, blood counts, chromosomes, and bacteria.
Why would a researcher use a stereoscope over a compound light microscope?
As already mentioned, stereo microscopes are used for viewing larger objects/specimen while compound microscopes are used to view much smaller details of a specimen. For this reason, a fine focus knob is required in a compound microscope to ensure that the image is in focus at high magnification.
