Bypass capacitors are used to maintain low power supply impedance at the point of load. Parasitic resistance and inductance in supply lines mean that the power supply impedance can be quite high. As frequency goes up, the inductive parasitic becomes particularly troublesome.
What is bypass capacitor in circuit?

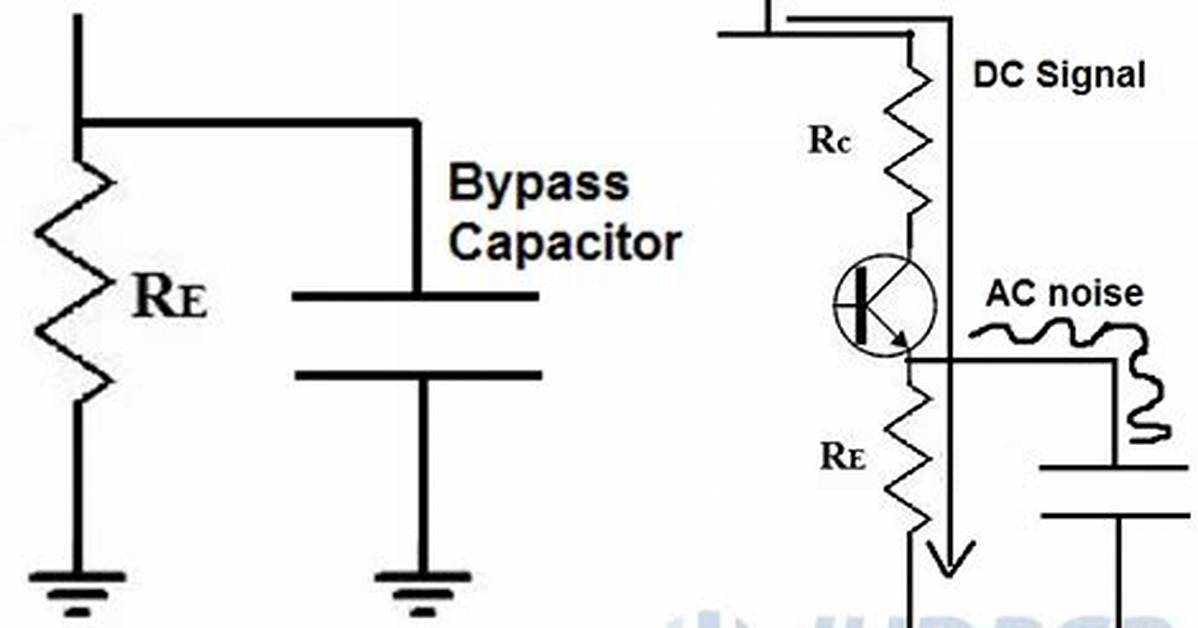

What is a Bypass Capacitor? A bypass capacitor is added to an amplifier circuit in order to allow AC signals to bypass the emitter resistor. This effectively removes it from the output gain equation resulting in an increase to the amplifiers AC gain.
What is bypass capacitor and coupling capacitor?
Coupling capacitors (or dc blocking capacitors) are use to decouple ac and dc signals so as not to disturb the quiescent point of the circuit when ac signals are injected at the input. Bypass capacitors are used to force signal currents around elements by providing a low impedance path at the frequency.
What will happen if the bypass capacitor is removed?
If the bypass capacitor is removed, an extreme degeneration is produced in the amplifier circuit and the voltage gained will be reduced.
Why are bypass capacitors necessary at power supply connections?
It is necessary to connect bypass capacitors (also called decoupling capacitors) to the power supply (VDD) terminal. Without bypass capacitors, an op-amp might malfunction or, in the worst-case scenario, suffer oscillation or other problems.
Where should a bypass capacitor be placed?
The ideal location to place bypass capacitors is as close as possible to the supply pin of the component. By placing the bypass capacitor very close to the power supply pin, it reduces the impact of the current spikes during the switching. It also provides a low impedance path to ground for AC noise signals.
How does bypass capacitor affect voltage gain?
Whenever bypass capacitor is connected in parallel with an emitter resistance, the voltage gain of CE amplifier increases. If the bypass capacitor is removed, an extreme degeneration is produced in the amplifier circuit and the voltage gained will be reduced.
What is the difference between bypass and decoupling capacitors?
The decoupling capacitor is used in the amplifier circuit where no AC is needed to eliminate self-excitation and stabilize the amplifier. The bypass capacitor is used when there is a resistor connection and is connected to both ends of the resistor to make the AC signal pass smoothly.
How is bypass capacitor value calculated?
Using these values, you can determine noise frequency with the formula fNOISE =1/(2×tRISE ); approximate surge current with the formula ISURGE =IAVE ×fNOISE /fMICRO , where fMICRO is the clock frequency of the controller; and calculate bypass-capacitor value with the formula CBYPASS =ISURGE /(2×π×fNOISE ×VRIPPLE ).
Why capacitor is used in amplifier?
Coupling capacitors are used in the amplifier circuit to isolate dc so that the biasing of the amplifier is not disturbed therefore it allows AC and DC voltage to be applied to the transistors without affecting each other.
What is meant by Miller effect?
In electronics, the Miller effect accounts for the increase in the equivalent input capacitance of an inverting voltage amplifier due to amplification of the effect of capacitance between the input and output terminals.
What is the significance of emitter bypass capacitor C2?
The purpose of C1 capacitor is to make the DC operating point insensitive to the signal generator impedance. The bypass capacitor C2 is present to ground an emitter for AC signal and, hence, increase voltage gain of the amplifier. C3 is used to reinforce short circuit for AC signal across DC voltage source2.
What is the effect of emitter bypass capacitor on the bandwidth of the amplifier?
EFFECT of removing emitter-bypass capacitor:
Bandwidth increases (since gain bandwidth product should be constant).
What is blocking capacitor?
a capacitor used for stopping the passage of direct current from one circuit to another while allowing alternating current to pass.
Can you run AC without capacitor?
Most of the motors in your air conditioner can’t run without a good capacitor. Like I said, they support these motors. They help the motor start and run efficiently. Some people have gone out to their air conditioner and noticed the fan wasn’t spinning on their AC as it should be.
Does a capacitor have to be grounded?
Capacitors are enclosed in plastic. Most are not connected to ground if you have an old tin can. They might attain a bond to ground through the Chassis if they are strapped to it. If the rest of the unit is grounded, grounding is not necessary.
Why does bypass capacitor increase gain?
Cathode Bypass Capacitor. A cathode resistor in a typical triode preamp is bypassed within a large capacitor to eliminate a negative form of feedback is called the cathode degeneration, which significantly increases gain.
When should you use a capacitor?
Capacitors are widely used in electronic circuits for blocking direct current while allowing alternating current to pass. In analog filter networks, they smooth the output of power supplies.
How does a capacitor reduce noise?
When noise enters a DC current flowing inside an electronic circuit, voltage fluctuations could occur, leading to IC malfunctions. To deal with this, capacitors are widely used to remove noise. This is because a capacitor functions as the simplest noise filter by blocking DC current while allowing noise to pass.
