In signal processing and related disciplines, aliasing is an effect that causes different signals to become indistinguishable (or aliases of one another) when sampled.
What causes aliasing?

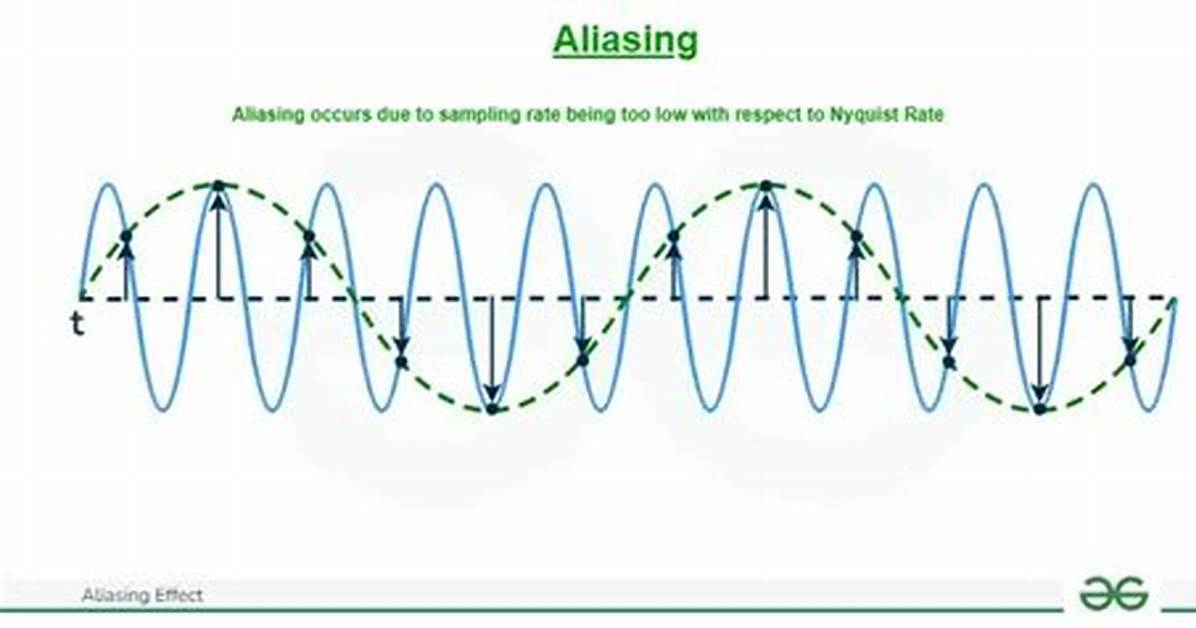

Aliasing occurs when you sample a signal (anything which repeats a cycle over time) too slowly (at a frequency comparable to or smaller than the signal being measured), and obtain an incorrect frequency and/or amplitude as a result.
What is aliasing in image?
Aliasing occurs when a signal is sampled at a less than twice the highest frequency present in the signal. Signals at frequencies above half the sampling rate must be filtered out to avoid the creation of signals at frequencies not present in the original sound.
What is aliasing in sampling theorem?
Aliasing is when a continuous-time sinusoid appears as a discrete-time sinusoid with multiple frequencies. The sampling theorem establishes conditions that prevent aliasing so that a continuous-time signal can be uniquely reconstructed from its samples. The sampling theorem is very important in signal processing.
What is aliasing and antialiasing?
Aliasing is the visual stair-stepping of edges that occurs in an image when the resolution is too low. Anti-aliasing is the smoothing of jagged edges in digital images by averaging the colors of the pixels at a boundary.
Why is the aliasing important?
Anti-aliasing can be important because it impacts your immersion and performance within a game, but it also has a performance impact on your games by taking up computational resources. If you’re running a 4K resolution on a 27-inch monitor, then you probably won’t need anti-aliasing.
What is an aliasing problem?
Aliasing errors occur when components of a signal are above the Nyquist frequency (Nyquist theory states that the sampling frequency must be at least two times the highest frequency component of the signal) or one half the sample rate.
What are the effects of aliasing?
Aliasing is an undesirable effect that is seen in sampled systems. When the input frequency is greater than half the sample frequency, the sampled points do not adequately represent the input signal. Inputs at these higher frequencies are observed at a lower, aliased frequency.
How do you identify aliasing?
You can detect aliasing by running a horizontal test on your oscilloscope. If the shape of the waveform changes drastically, you may have aliasing. You can also perform a peak detect test and if the waveform still changes drastically, aliasing may be an issue.
Is aliasing reversible?
Explanation: Aliasing is an irreversible process. Once aliasing has occurred then signal can-not be recovered back.
What is aliasing effect How do you overcome it?
The solution to prevent aliasing is to band limit the input signals—limiting all input signal components below one half of the analog to digital converter’s (ADC’s) sampling frequency. Band limiting is accomplished by using analog low-pass filters that are called anti-aliasing filters.
What is folding and aliasing?
About. Spectral Aliasing (Figure 1) and Folding (Figure 2) are phenomena in which NMR peaks occur at frequencies that are different from their real frequencies. Such peaks are called folded or aliased peaks, depending on the applied method of data acquisition.
Which of the following processes is aliasing?
Which of the following is the process of ‘aliasing’? Explanation: Aliasing is defined as the phenomenon in which a high frequency component in the frequency spectrum of the signal takes the identity of a lower frequency component in the spectrum of the sampled signal.
What is aliasing effect in digital communication?
Aliasing. Aliasing can be referred to as “the phenomenon of a high-frequency component in the spectrum of a signal, taking on the identity of a low-frequency component in the spectrum of its sampled version.”
