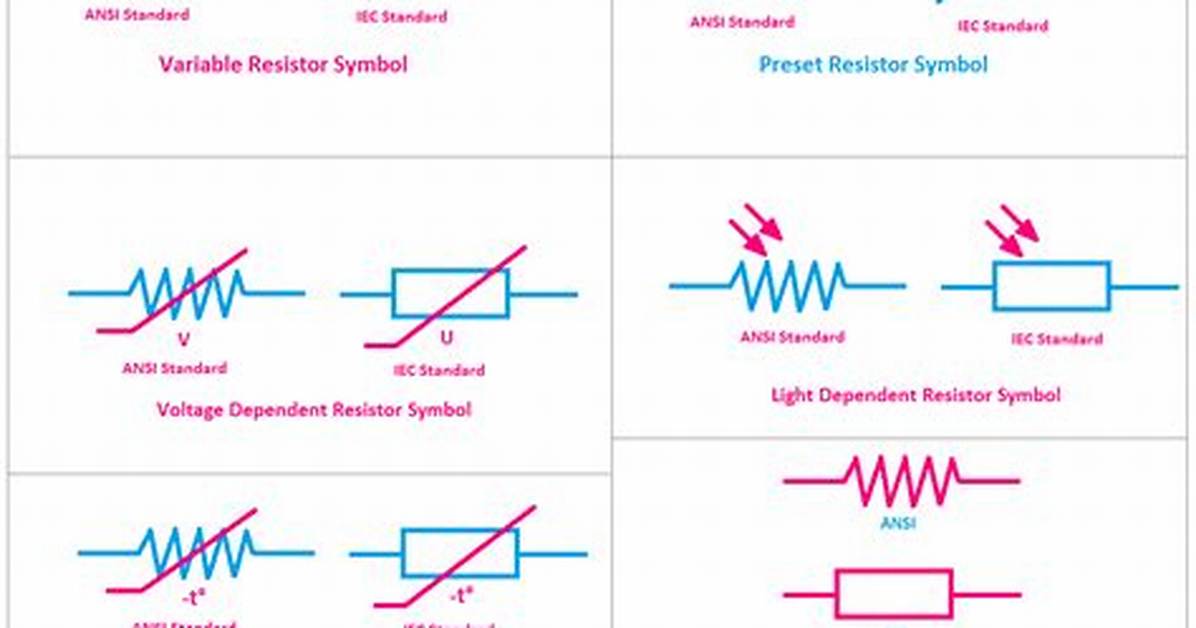

A variable resistor also called an adjustable resistor, consists of two terminals, where one of the terminals is a sliding or moving contact often known as a wiper. The variable resistor IEC symbol is represented by a rectangular box and an arrow across (or above) it, like that shown in the figure below.
What are the 4 types of resistors?
Types of Resistors
Fixed Value Resistors. These are the predominant type of resistor configuration, and as the name suggests, they have a fixed resistance value. Variable Resistors. Resistor Networks. Carbon Film Resistors. Metal Film Resistors. Wirewound Resistors. Metal Oxide Resistors. Metal Strip Resistors.
What is the symbol of resistor of resistance?
The ohm (symbol: Ω) is the SI unit of electrical resistance, named after Georg Simon Ohm.
What is the symbol of conductor?
Electric Wire or Conductor Symbol
It is symbolized by a straight line.
What are 3 types of resistors?
There are 3 main types of resistors based on their composition: carbon-composition resistors, carbon-film resistors, and metal-film resistors.
What is resistor formula?
The resistance formula is as follows: Resistance = voltage drop across a resistor/ current flowing through a resistor. R = frac{V}{I} R = resistance (Ohms, Ω) V = voltage difference which is between the two ends of a resistor (Volts, V)
What are the 2 types of resistance?
There may be two types of resistors in general. Variable Resistors and Set Resistors. Around resistors.
What is the symbol of buzzer?
The buzzer symbol is a semi-circle shape. To add a motor to the circuit, draw a circle with the letter M in the middle. A component called a resistor controls the flow of electricity through the circuit.
What is a diode symbol?
In circuit diagrams, a diode is represented by a triangle with a line across one vertex.
Is a battery a resistor?
A battery can be thought of as a perfect voltage source with a small resistor (called internal resistance) in series. The electric energy density produced by the chemistry of the battery is called emf, but the amount of voltage available from the battery is called terminal voltage.
Is a bulb a resistor?
A light bulb, while not a traditional resistor, does behave like a resistor. A resistor is a component that limits the flow of electrons. When these electrons flow through a resistor, they face ‘resistance’, and a lot of their energy is transformed into other forms of energy like heat.
What is linear resistor?
The resistors whose value changes with the applied temperature and voltage, are called linear resistors.
