They provide desirable reusability and can be used assuredly up to fifteen times after an initial fastening.
How do you tighten a Nyloc nut?
When tightening screws into Nyloc Nuts the force required to tighten the screws will double, when the screw reaches the Nylon in the nut. You must keep on tightening and you will see the end of the screw come through the end of the nut. Tighten with your full strength.
What is Nyloc nut type?
Nyloc Nuts – Type T
The term “Nyloc” is an abbreviation for nylon insert self-locking nut.
Do Nylock nuts need washers?
I contacted the customer service and they told me that nylon lock nuts (the ones that came with the squat rack) do not need washers. However, when I tried to tighten the nylon lock nuts, there is a bit of slack. It’s not too much but enough to be noticeable.
Can you torque a Nyloc nut?
Typically there are the “Nylock” or elastic stop nuts, and the “all-metal” lock nuts. The rule of thumb is to add the prevailing torque to the torque value when applying torque to a Nylock nut. This is because the prevailing torque doesn’t contribute to bolt tightening. It is just friction that needs to be overcome.
Why should Nyloc nuts only be used once?
They can be reused quite a bit. Really the only thing that is going to affect their locking ability is excess heat or dirty threads that tear up the nylon. Remember that the nylon has pretty much nothing to do with the holding power of the nut.
Are Nyloc nuts reusable?
For example, Carroll Smith (Carroll Smith’s Nuts, Bolts, Fasteners, and Plumbing Handbook) notes that the nylon insert is not damaged by installation and therefore they can be reused many times, and a Federal Aviation Administration Advisory Circular allows nuts to be reused if the prevailing torque is within
Can nylon lock nuts be removed?
The nylon in traditional hex lock nuts can wear, and become less effective after repeated removal and installation.
How tight should a locking nut be?
Getting them off a journey when you have a flat could leave you stranded, so they should be nipped up a bit more than finger tight. If the locking nut comes loose, the other wheel nuts should be fully tightened and Torqued.
Which way do nylon nuts go on?
The top of the nut is where the nylon insert is located. The hex bolt threads from the bottom of the nut through the nylon insert which holds the bolt in place. 1 of 1 found this helpful.
How do you lock a torque nut?
Locking Nuts
Place the lock nut against the threaded end of the bolt, just as you would place an ordinary nut.Hand-tighten the lock nut until it’s securely threaded on to the bolt.Tighten the lock nut with a torque wrench until it reaches the specified torque.
What grade are Nyloc nuts?
Standard grade 8 nylon lock nuts. Sold individually. A nyloc nut, also referred to as a nylon insert lock nut, polymer insert lock nut, or elastic stop nut, is a kind of locknut.
What is a Nyloc nut made of?

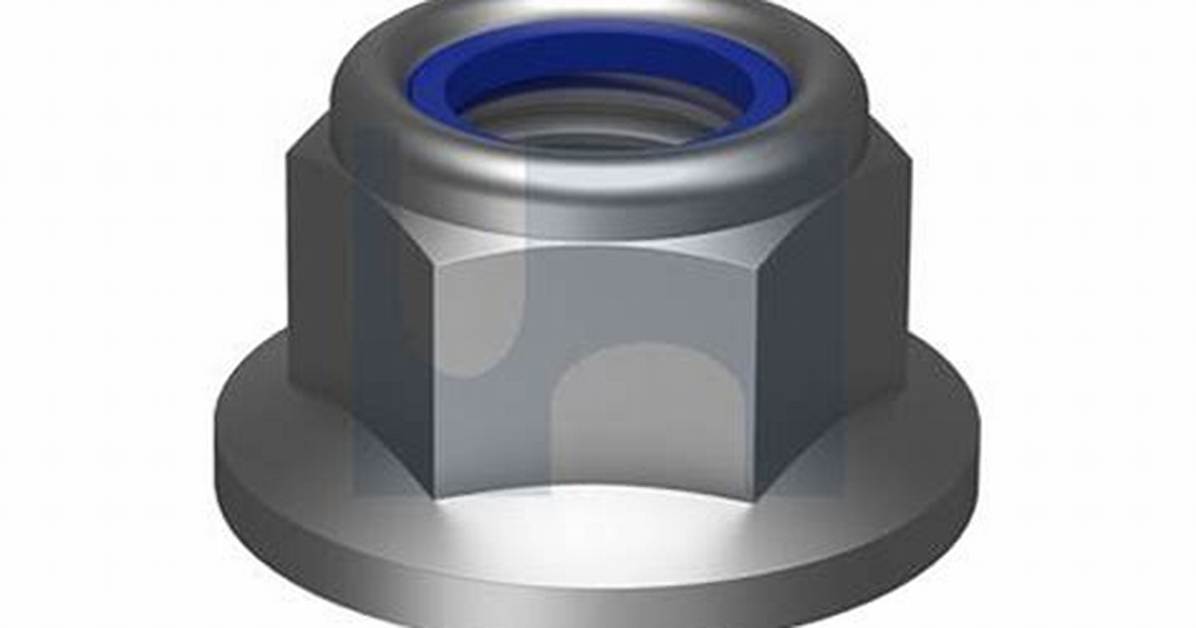

A Nyloc nut is a locking nut that has a nylon insert at the end which is slightly smaller than the diameter of the screw. The nylon insert deforms over the thread of the screw, creating friction which locks the nut in place. The side of the nut without the nylon ring is threaded onto the bolt first.
What is difference between type P and type T nuts?
The ‘P’ and ‘T’ designations refer to the “depth” of the nut. ‘P’ Type are referred to as ‘Full’ ‘T’ Type are fererred to as ‘Thin’ This designation is used for all thread and material types.
Do you use spring washers with Nyloc nuts?
The undoing aspect of nylocks is annoying and they should only be used once BUT they have a substantial advantage over spring washers and ordinary nuts in that they do not vibrate undone if the bolt is or becomes loose for any reason.
What happens if you dont use a washer?
Most notably, washers protect the surface from damage during installation. They distribute the pressure and prevent the fastener from moving or corroding. Skipping on washers can dramatically reduce the lifespan of how your product is put together. Ultimately, that leads to disaster for the product itself.
How do you use a nylon lock nut?
When you install the nylon lock nut onto a bolt or threaded stud, the nylon insert wraps around the threads and locks the nut in place. This gives a nylon lock nut a distinct advantage over a lock washer when the bolt or threaded stud is subject to vibration, as the nylon lock nut is unaffected by vibration.
