The first number is the tip size, the second number is the series(1 or 3 typically), and the last numbers are the fuel gas, 101 is typ acetylene and 303 is LP/NG. “

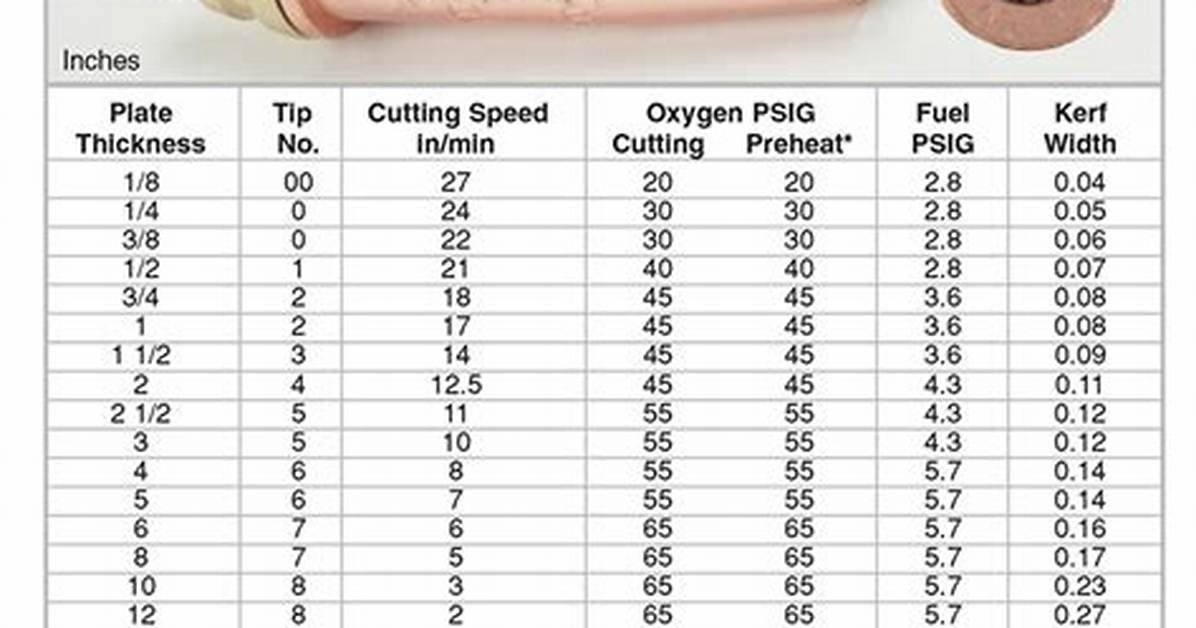

How do you choose a cutting torch tip?
4-Step Method of Selecting the Right Cutting Tips
Metal Thickness. The thickness of the metal being cut is very important because the center hole of the cutting and gouging tip is sized to deliver the proper amount of oxygen at the proper pressure for a specific thickness. Application. Fuel Gas.
What determines the size tip to be used for cutting pipe?
A pipe’s diameter determines what size cutting tip is needed to cut that pipe. 8.
What should I set my cutting torch on?
The recommended setting for multi-hole cutting is the oxygen regulator at 40 PSIG, with the acetylene regulator setting at 10 PSIG. As with the previous recommendation, this applies to cutting less than 1.5 inches thick steel.
Is Mapp more sensitive to shock than acetylene?
MAPP gas is more sensitive to shock than acetylene. Needle valves on the torch regulate the flow of oxygen and acetylene at the torch. Two types of regulators are the single-stage and the two-stage. Welding hoses can be safely repaired with tape.
How thick of steel can a torch cut?
Oxy-fuel torches also offer versatility, as they are capable of cutting, welding, brazing, soldering, heating and gouging. The average hand-held system can cut steel 6 to 12 inches thick. However, some oxyfuel hand torches are able to cut steel more than 20 inches thick.
What should acetylene pressure be?
A full acetylene cylinder which has a pressure of 250 psi at 700F (1725 kPa at 20 C) will have a pressure of 315 psi at 900F (2175 kPa at 310C) and a pressure of 190 psi at 500 F (1300 kPa at 90C).
How many types of cutting torches are there?
There are two types of cutting torches : low-pressure cutting torches and high-pressure cutting torches.
What is victor style cutting torch?
Gas cutting and welding torches, also known as oxy-fuel torches or oxy-acetylene torches, use fuel gas and oxygen to heat and cut through metal workpieces. Cutting torches efficiently cut through thick steel and stainless steel and are well suited for demolition tasks.
What are the three types of flame?
There are three types of flames natural flame, carburizing flame and oxidizing flame. Natural flame has synchronized mixture of fuel and oxygen, carburizing flame has more fuel and oxidizing flame has more oxygen.
Can you use propane for cutting torch?
Cutting torches use a gas and oxygen to cut through metal; the gas provides the heat while the blown oxygen cuts the metal. The gases you can use with oxygen in cutting torches includes acetylene, propane and others.
Do you turn on oxygen or acetylene first?
You can start by turning on the acetylene valve by 1/8th of a turn and igniting the flame. Now slow down the flame until the smoke is reduced to a minimum. You see the flame turning into a feather-like shape towards the end. Now turn on the oxygen valve slowly and watch the preheat flames appear.
What should my oxy acetylene regulators be set at?
Recommended oxy/acetylene cutting tip pressures vary with size. If you have no manufacturer setting- information, and are cutting less than 1 ½” thick steel, set the acetylene regulator for 10 psig, and the oxygen regulator for 40 psig.
Why is my cutting torch popping?
The reason that an oxyacetylene cutting torch will pop and go out is because of a problem with gas flow. Usually this is either an issue with flow settings, a leak or blockage.
