Consequently, what size window hinge do I need?

Measure the stack height But the ruler against the frame and estimate the distance to the bottom of the window itself. Hinges come in two stack heights: 13mm and 17mm so you should be able to judge which would be the most appropriate size for your window from this estimation.

Similarly, how do you fit window friction hinges? Friction Hinge Fitting Guide

1. Place the Friction Hinge nose bar onto the sash eurogroove and fix in position. The position will depend upon the window profile used.
2. Fit the sash to the frame. Ensure that the nose caps are pushed up to the frame corner and fix in position. Adjustment is provided by the adjustment slots if required.

Simply so, what is the stack height on a window hinge?

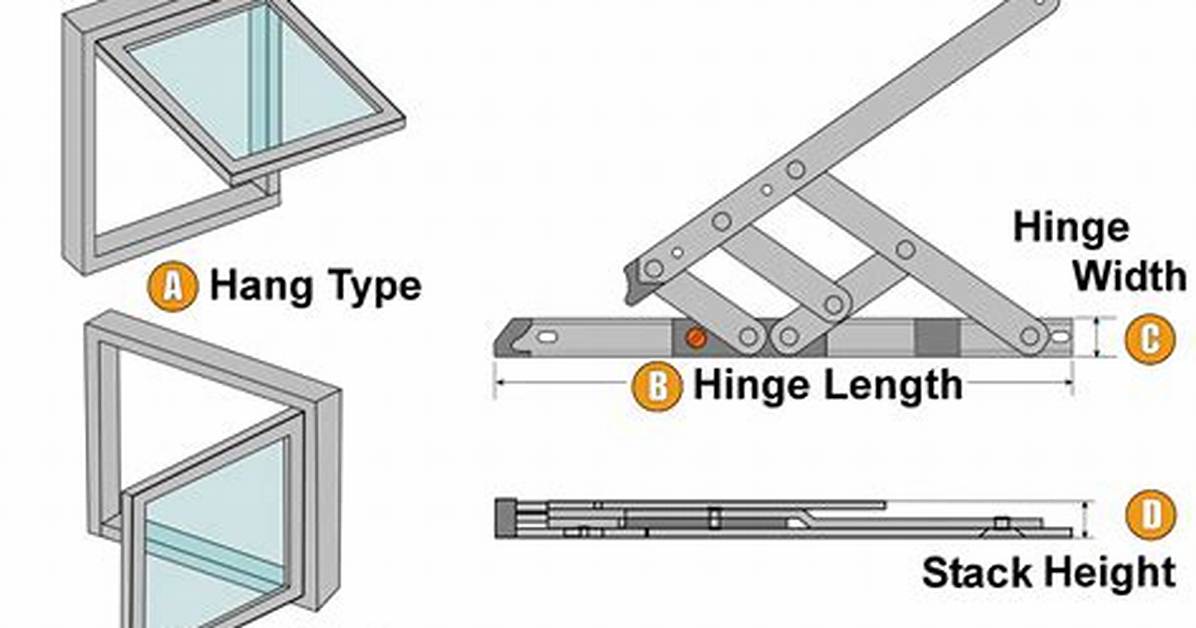

Hinges come in the following sizes: 8 , 10, 12, 16, 20 or 24 inches long. The second measurement is the Stack Height, this measurement is the height of the hinge when closed, please see diagram (measure hinge stack height here). Stack heights come in two sizes 13mm or 17mm.

How do you replace window stays?

Using a pencil, dot the position of the stays fixing holes onto the casement frame. Drill pilot holes and screw the stay to the casement frame. Close the window and ensure it is tight against the frame. Position the pins under the stay so that each line up with holes to both ends of the stay.
