How Does a Wheel Encoder Work?

Alexander Ross • • 5 min read
How Does a Wheel Encoder Work?
The RedBot Wheel Encoder allows you to track the number of revolutions each wheel has made. This sensor works by detecting the movement of small teeth connected to a motor through the reflection of infrared light. Two mounting holes lets you easily connect this sensor to your robot chassis.

.

Besides, how does an encoder work?

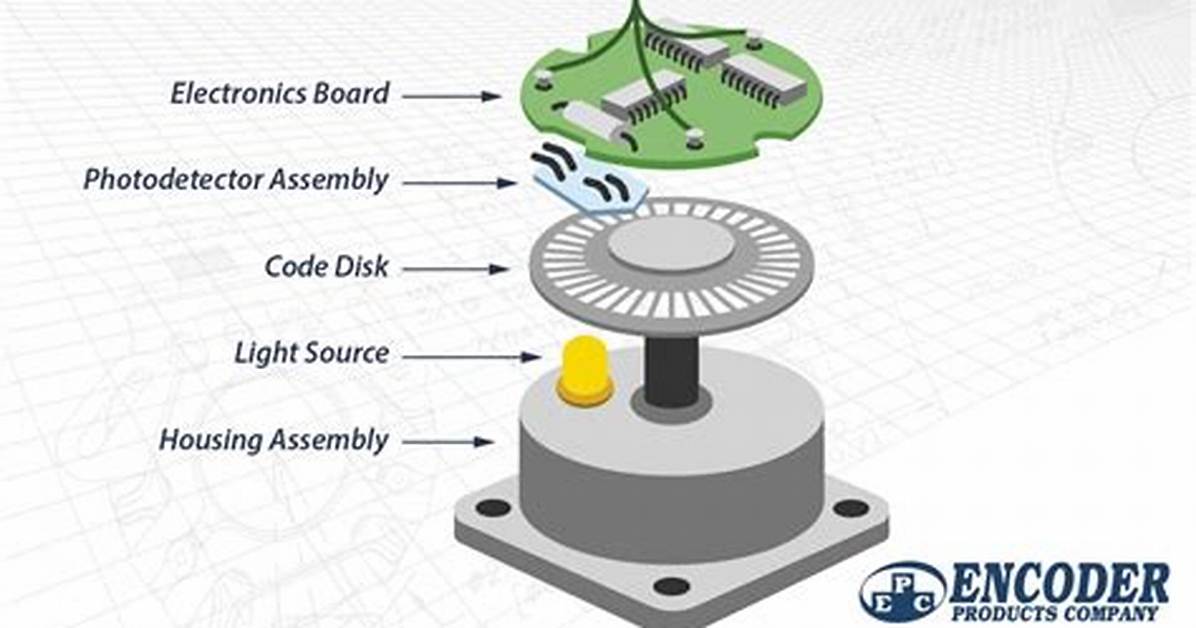

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to analog or digital output signals. The output of an absolute encoder indicates the current shaft position, making it an angle transducer.

Beside above, what is an encoder wheel? The encoder is a sensor attached to a rotating object (such as a wheel or motor) to measure rotation. The sensor would be fixed on your robot, and the mechanical part (the encoder wheel) would rotate with the wheel.

Simply so, what is an encoder used for?

An encoder is a sensing device that provides feedback from the physical world-- it converts motion to an electrical signal which can be read by some type of control device, such as a coun- ter or PLC.

What is encoder example?

An encoder is an electronic device used to convert an analogue signal to a digital signal such as a BCD code. The encoder allows 2 power N inputs and generates N-number of outputs. For example, in 4-2 encoder, if we give 4 inputs it produces only 2 outputs.

Related Question Answers

What are the types of encoder?

There are two different types of encoders: linear and rotary. A linear encoder responds to motion along a path, while a rotary encoder responds to rotational motion. An encoder is generally categorized by the means of its output.

What is the difference between encoder and decoder?

The Main Difference between a decoder and encoder is that a decoder has binary code as an input while an encoder has binary code as an output. It has a number of input lines, but only one of the inputs is activated at a given time and produces an N-bit output code that depends on the activated input.
