Similarly, it is asked, what is the difference between point load and distributed load?

When placed in steel storage racks, a uniformly distributed load is one whose weight is evenly distributed over the entire surface of the rack's beams or deck. A point load is a one with its weight significantly concentrated in one (or more) places on the rack's beams or decks.

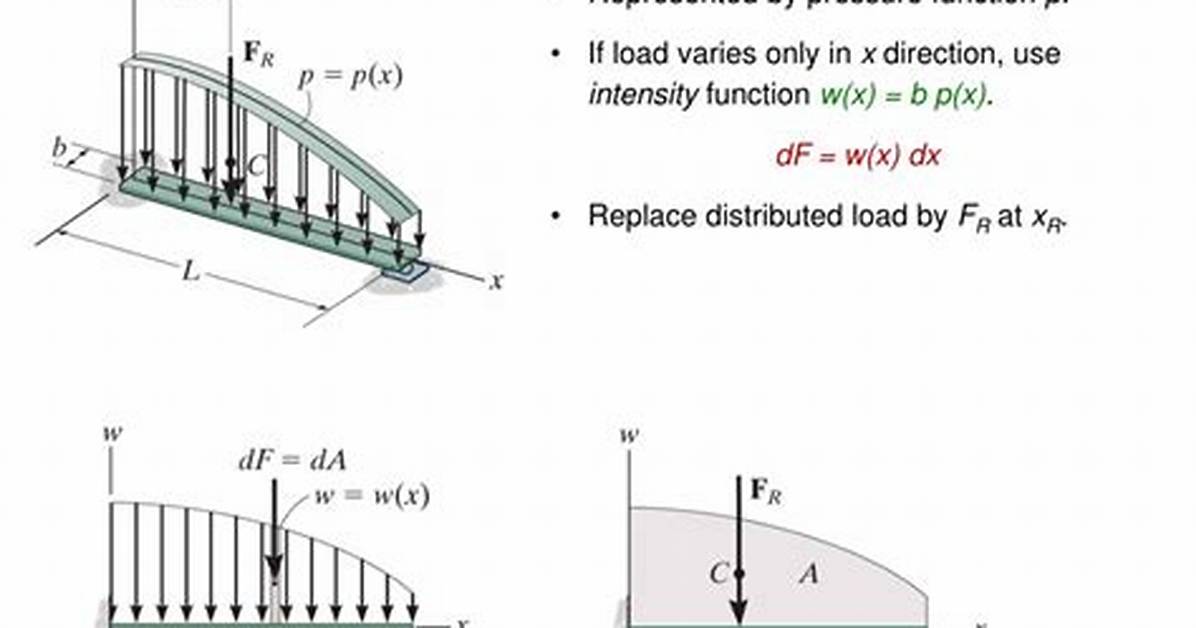

One may also ask, is weight a distributed load? In many situations a surface area of a body is subjected to a distributed load. Such forces are caused by winds, fluids, or the weight of items on the body's surface. This is a uniform load along one axis of a flat rectangular body. In such cases, w is a function of x and has units of force per length.

Herein, what is a load diagram?

Shear and bending moment diagrams are analytical tools used in conjunction with structural analysis to help perform structural design by determining the value of shear force and bending moment at a given point of a structural element such as a beam.

How force is distributed?

Distributed Forces. A distributed force is any force where the point of application of the force is an area or a volume. Distributed forces can be broken down into surface forces and body forces. Surface forces are distributed forces where the point of application is an area (a surface on the body).
