What Is a Linear Array Transducer?

Alexander Ross • • 6 min read
What Is a Linear Array Transducer?

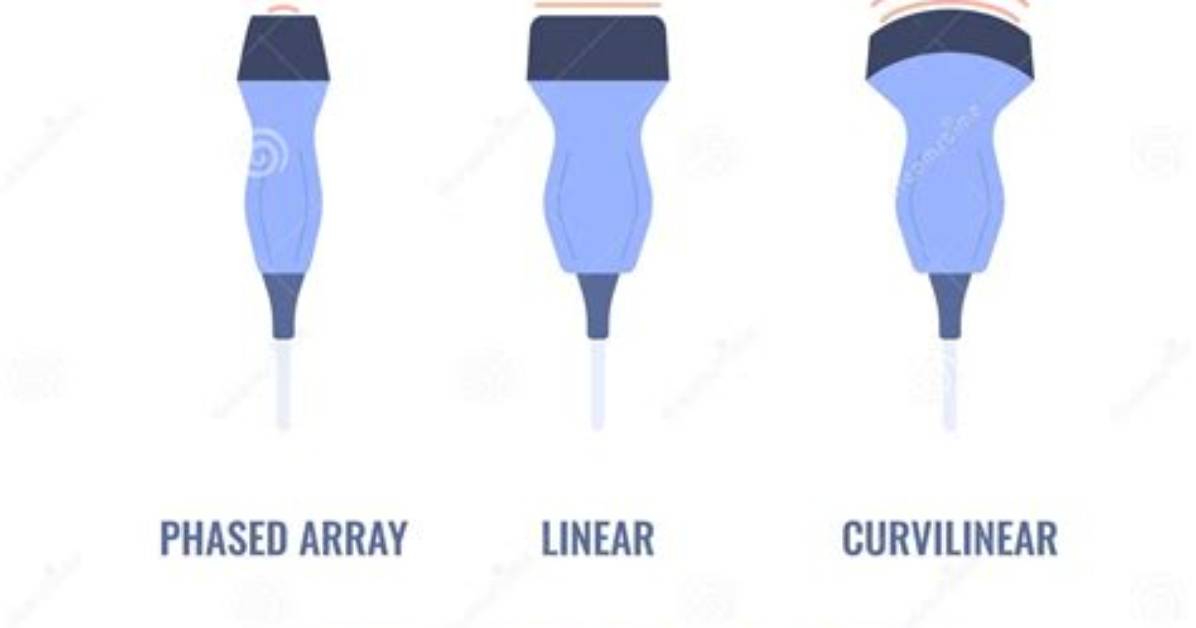

A transducer is a device that translates one form of energy to another. Linear, sector, and curved array are three formats of a transducer that determine the shape and field of view. Linear array transducers produce rectangular images and offer the best overall image quality.

.

Keeping this in view, how many elements are in a linear phased array transducer?

Rectangular, 1/4 to 1/2 wavelength wide. There are approximately 100 to 200 elements, each with width of one quarter to half wavelength.

Similarly, what is a linear ultrasound probe? A linear probe uses high frequency ultrasound to create high resolution images of structures near the body surface. This makes the probe ideal for vascular imaging and certain procedures such as central line placement.

Consequently, what are the different types of ultrasound transducers?

Below we list the three most common ultrasound transducer types – linear, convex (standard or micro-convex), and phased array.

What is array in ultrasound?

A phased array ultrasound transducer is typically 2-3 cm long, consisting of 64-128 elements. It is a smaller assembly than a sequential array and can be either linear or curvilinear. A sector field of view is produced by all elements firing to create a single waveform.

Related Question Answers

What is phased array probe?

A phased array transducer is an arrangement of transducer elements properly excited that allow the shaping and control of the ultrasonic beam in a specific manner.

What determines lateral resolution?

By way of contrast, lateral resolution is defined as the ability of the system to distinguish two points in the direction perpendicular to the direction of the ultrasound beam. It is also known as azimuthal resolution. Lateral resolution is affected by the width of the beam and the depth of imaging.
