Also to know is, what is a two pipe steam system?

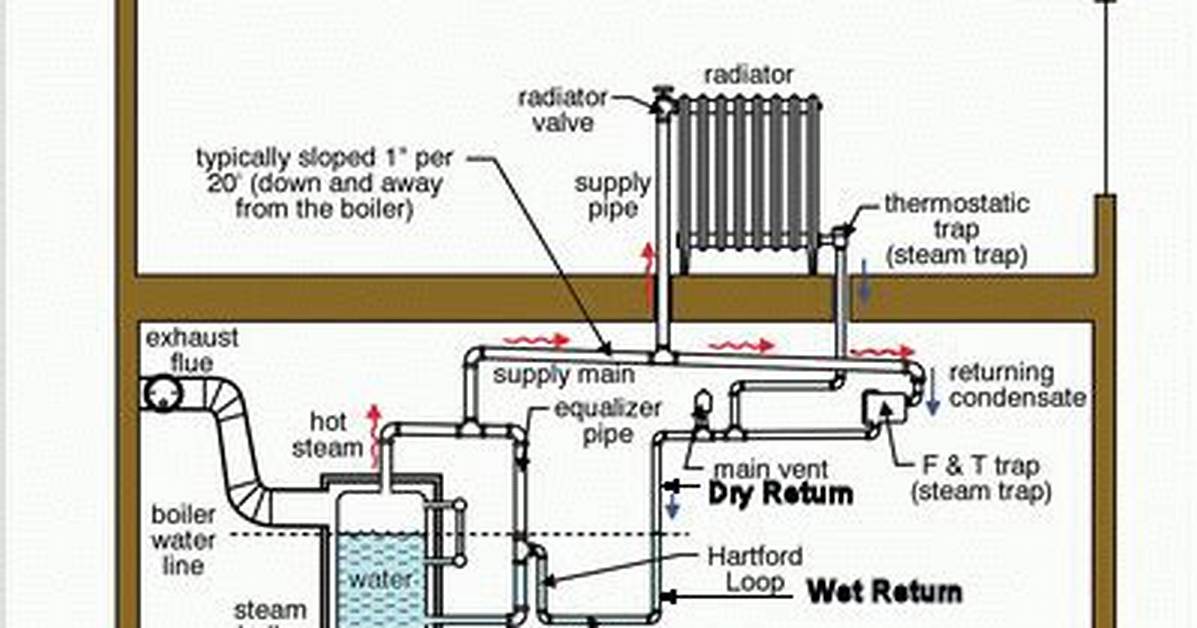

The two pipe system has one pipe to carry steam. It is a smaller pipe than on the one pipe system because it only has one job. A second pipe carries the condensate back to the boiler. The condensate pipe is smaller than the steam pipe because it carries a liquid.

Also, how do you balance a one pipe steam? Balancing One-Pipe Steam Systems

1. First, vent the mains quickly.
2. Install a “Y" strainer before the main vent.
3. Vent the radiators based on their size, not on their location within the building.
4. Use two vents on oversized radiators.
5. Insulate all the steam lines.
6. Clean the system (and a dozen times, if necessary).
7. Lower the steam pressure.

Regarding this, how does a 2 pipe heating system work?

A 2-pipe HVAC system is one that uses the same piping alternately for hot water heating and chilled water cooling, as opposed to a 4-pipe system that uses separate lines for hot and chilled water. Two-pipe originated 50 or 60 years ago as a cost-effective way to add air conditioning.

How does steam piping work?

Steam passes from the boiler into the steam mains. Initially the pipework is cold and heat is transferred to it from the steam. The air surrounding the pipes is also cooler than the steam, so the pipework will begin to lose heat to the air. Insulation fitted around the pipe will reduce this heat loss considerably.
