Statistical process control chart
- Click on the Formula tab, click on More Function select Statistical and then STDEV. S from the dropdown menu.
- Select cell C1 and type "Mean (CL)" in it. Select C2 and type "=I$1".
- Click on Insert tab,click on Line Chart and then Click on Line.
- You have created your chart.
- This is what your final chart will look like.
.
Considering this, how do you create a statistical process control chart?

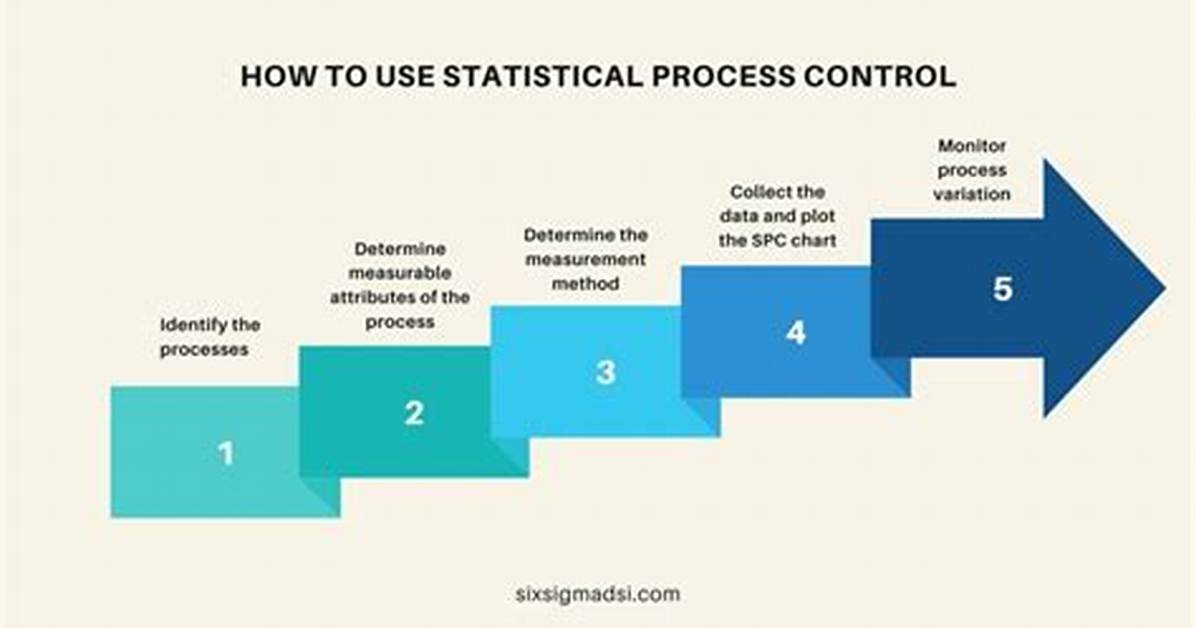

Control Chart Basic Procedure
- Choose the appropriate control chart for your data.
- Determine the appropriate time period for collecting and plotting data.
- Collect data, construct your chart and analyze the data.
- Look for "out-of-control signals" on the control chart.
- Continue to plot data as they are generated.
Subsequently, question is, what are the different types of control charts? Two broad categories of chart exist, which are based on if the data being monitored is “variable” or “attribute” in nature.
- Variable Control Charts.
- X bar control chart.
- Range “R” control chart.
- Standard Deviation “S” control chart.
- Attribute Control Charts.
- “u” and “c” control charts.
- “p” and “np” control charts.
Thereof, how do I add SPC in Excel?
Installing SPC for Excel as an Add-in
- Open an Excel workbook.
- Select Tools from the Excel toolbar.
- Select Add-ins.
- Select Browse for Excel 2016 (or Select for Excel 2011)
- Browse to the folder containing the software program file (SPC for Excel Program Files)
- Open the folder.
How are control limits calculated?
Control limits are calculated by: Estimating the standard deviation, σ, of the sample data. Multiplying that number by three. Adding (3 x σ to the average) for the UCL and subtracting (3 x σ from the average) for the LCL.
Related Question Answers
How do you draw a histogram in Excel?
Create a histogram chart
- Select your data. (This is a typical example of data for a histogram.)
- Click Insert > Chart.
- In the Insert Chart dialog box, under All Charts, click Histogram , and click OK.
How do you add upper and lower limits in Excel?
Chart with upper and lower control limits
- Highlight data table. Go to the ribbon to the Insert tab. Choose a Line chart.
- Your chart should like similar to this one.
- Right click first lower limit line and choose Format Data Series from the menu.
- Change line color to red and set width to 5 pts.
- Do the same for upper limit line. Change chart title.
