In this manner, what is half controlled rectifier?

Single Phase Semi Controlled Rectifier is used to convert the AC voltage to DC voltage, both the positive and Negative half cycle are converted. One SCR and one diode conducts for positive half cycle and other one SCR and diode conducts for negative half cycle to convert the AC voltage to DC voltage.

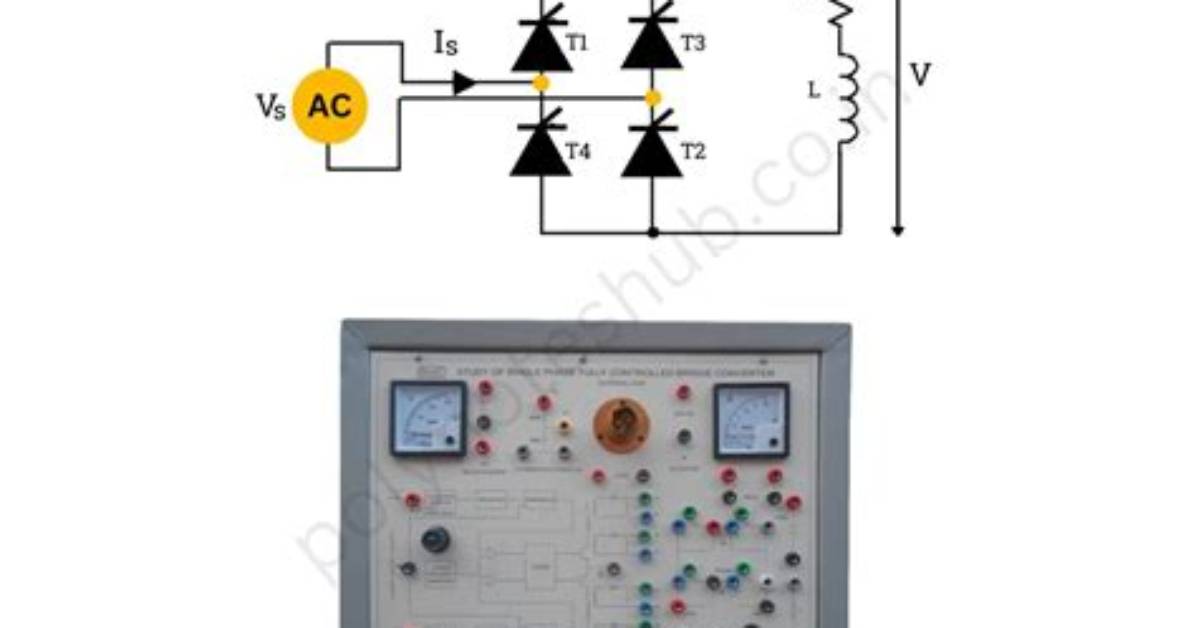

Additionally, how do you control a fully controlled converter? Phase controlled rectification uses combinations of diodes and thyristors (SCR's) to convert the AC input voltage into a controlled DC output voltage. Fully-controlled rectifiers use four thyristors in their configuration, whereas half-controlled rectifiers use a combination of both thyristors and diodes.

People also ask, what is the difference between half controlled and fully controlled rectifier?

A half controlled rectifier (full bridge) can only control power flow in a single quadrant. A full-controlled rectifier uses SCR's for all control elements - 4 in a single phase bridge, 6 in a three-phase bridge. Full controlled rectifiers can control power in quadrants 1 and 2.

What is the output of rectifier?

A full-wave rectifier converts the whole of the input waveform to one of constant polarity (positive or negative) at its output. Full-wave rectification converts both polarities of the input waveform to pulsating DC (direct current), and yields a higher average output voltage.
