Similarly one may ask, what does a chain roller do?

Roller chain or bush roller chain is the type of chain drive most commonly used for transmission of mechanical power on many kinds of domestic, industrial and agricultural machinery, including conveyors, wire- and tube-drawing machines, printing presses, cars, motorcycles, and bicycles.

Likewise, how does a chain drive work? Chain drive is a way of transmitting mechanical power from one place to another. Sometimes the power is output by simply rotating the chain, which can be used to lift or drag objects. In other situations, a second gear is placed and the power is recovered by attaching shafts or hubs to this gear.

Hereof, how will you designate roller chain?

There are 14 sizes of roller chains regulated by ANSI . For easy reference, these are numbered 25, 35, 41, 40, 50, 60, 80, 100, 120, 140, 160, 180, 200, and 240. The numbers to the left of the right-hand digit refer to the chain pitch in eighths of an inch. To calculate the pitch, multiply the number by 3.175 mm.

What are the five parts of roller chain?

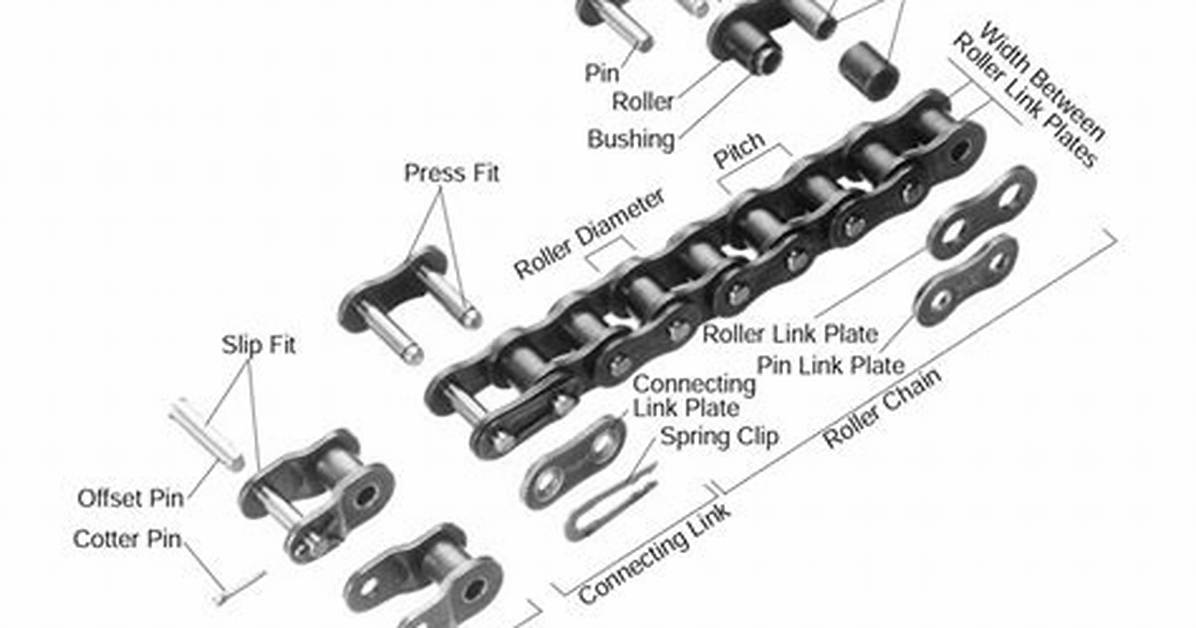

For starters, roller chain consists of 5 basic components: Pin, bushing, roller, pin link plate, and roller link plate. Each of these components are manufactured and assembled to precise tolerances and heat treated to optimize performance with regard to wear resistance, fatigue strength, and tensile strength.
