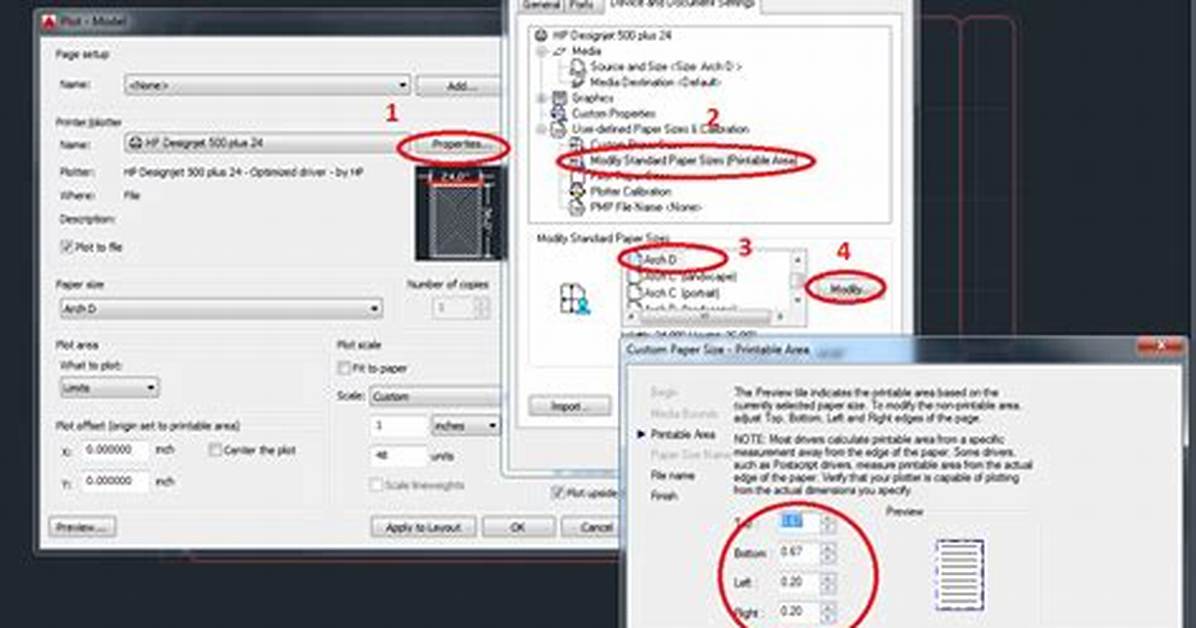

Plot to a scale from model space
- From the Model tab, click the Plot button on the Quick Access toolbar or choose Output tab, Plot.
- If necessary, choose your printer/plotter from the Name drop-down list.
- Look in the Plot Scale section at the lower-right corner of the dialog box.
- Uncheck the Fit to Paper checkbox.
.
Consequently, how do you use model space in AutoCAD?
On the Views tab, select the view drawing in which you want to create a model space view, right-click, and click Open. Select the view drawing again, right-click, and click New Model Space View. In the Add Model Space View dialog box, enter a name for the new model space view.
Additionally, how do I get to model space in AutoCAD 2018? To Access Model Space
- Click the Model tab in the lower-left corner of the application window.
- If the Model and layout tabs are hidden, set the LAYOUTTAB system variable to 1.
- If you want to access model space from within a layout viewport on a layout tab, double-click inside the layout viewport.
Keeping this in view, how do you plot a paper space in AutoCAD?
About Printing From Paper Space
- Create a drawing or model in model space.
- Click a layout tab to access paper space.
- Specify layout page settings such as output device, paper size, drawing area, output scale, and drawing orientation.
- Insert a title block into the layout (unless you have started with a drawing template that already has a title block).
How do you plot to scale in AutoCAD?
Scale a Drawing to Fit the Page
- Click Output tab Plot panel Plot. Find.
- In the Plot dialog box, under Plot Scale, select the Fit to Paper option. The resulting scale is automatically calculated. The ratio of plotted units to drawing units in the custom scale boxes is displayed.
- Click OK to plot the drawing.
Related Question Answers
What is AutoCAD model space?
There are two distinct working environments, called "model space" and "paper space," in which you can work with objects in a drawing. By default, you start working in a limitless 3D drawing area called model space. In the layout viewports, you scale the model space views relative to paper space.
What is layout space in AutoCAD?
Layout viewports are objects that display views of model space. You create, scale, and place them in paper space on a layout. On each layout, you can create one or more layout viewports. Each layout viewport is like a closed circuit TV monitor of a view of the model at a scale and orientation that you specify.
