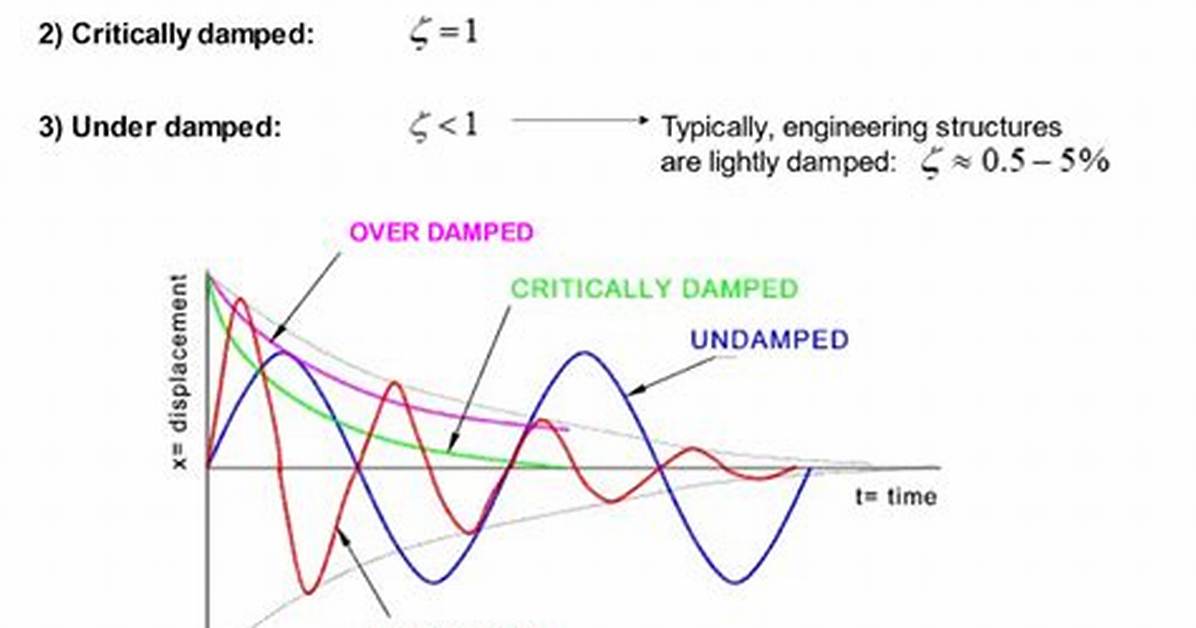

An overdamped system moves slowly toward equilibrium. An underdamped system moves quickly to equilibrium, but will oscillate about the equilibrium point as it does so. A critically damped system moves as quickly as possible toward equilibrium without oscillating about the equilibrium.

What is critical damping in control system?

Critical damping is defined as the threshold between overdamping and underdamping. In the case of critical damping, the oscillator returns to the equilibrium position as quickly as possible, without oscillating, and passes it once at most [1.

What is the damping ratio for a critically damped system?

Critically damped systems have a damping ratio of exactly 1, or at least very close to it. is the natural frequency of the system. The damping ratio is dimensionless, being the ratio of two coefficients of identical units.
