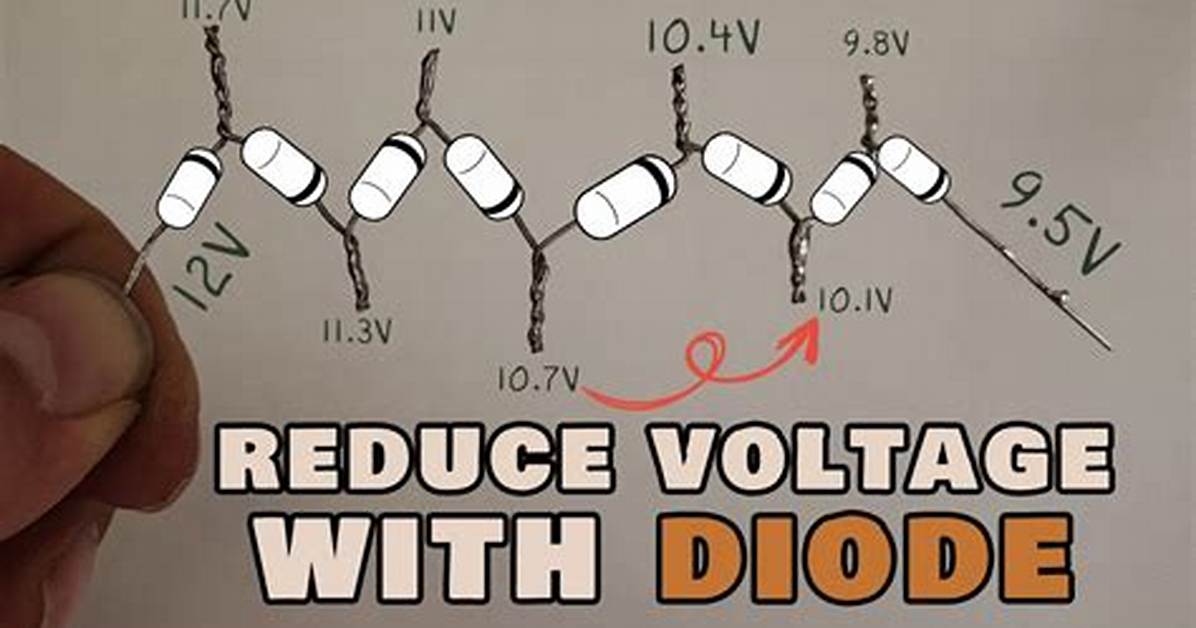

Diodes allow electricity to flow in only one direction, but a diode will only conduct electricity, when the supply reaches its threshold. The threshold for common silicon diodes is 0.6 volts. ... After each diode, the voltage can be seen to drop by 0.6 volts. In this way, diodes can be used to reduce voltage, in a circuit.
How much voltage does a diode drop?
A good forward-based diode displays a voltage drop ranging from 0.5 to 0.8 volts for the most commonly used silicon diodes. Some germanium diodes have a voltage drop ranging from 0.2 to 0.3 V. The multimeter displays OL when a good diode is reverse-biased.
Do diodes affect voltage?
As we know from the i-v curve, the current through and voltage across a diode are interdependent. More current means more voltage, less voltage means less current. ... Typically, a silicon diode will have a VF around 0.6-1V. A germanium-based diode might be lower, around 0.3V.
