Triangular wave is generated by alternatively charging and discharging a capacitor with a constant current. This is achieved by connecting integrator circuit at the output of square wave generator as shown in the figure above. Assume that V' is high at +Vsat. ... This is illustrated in Figure below.

How a triangular wave generator is derived from a square wave generator?

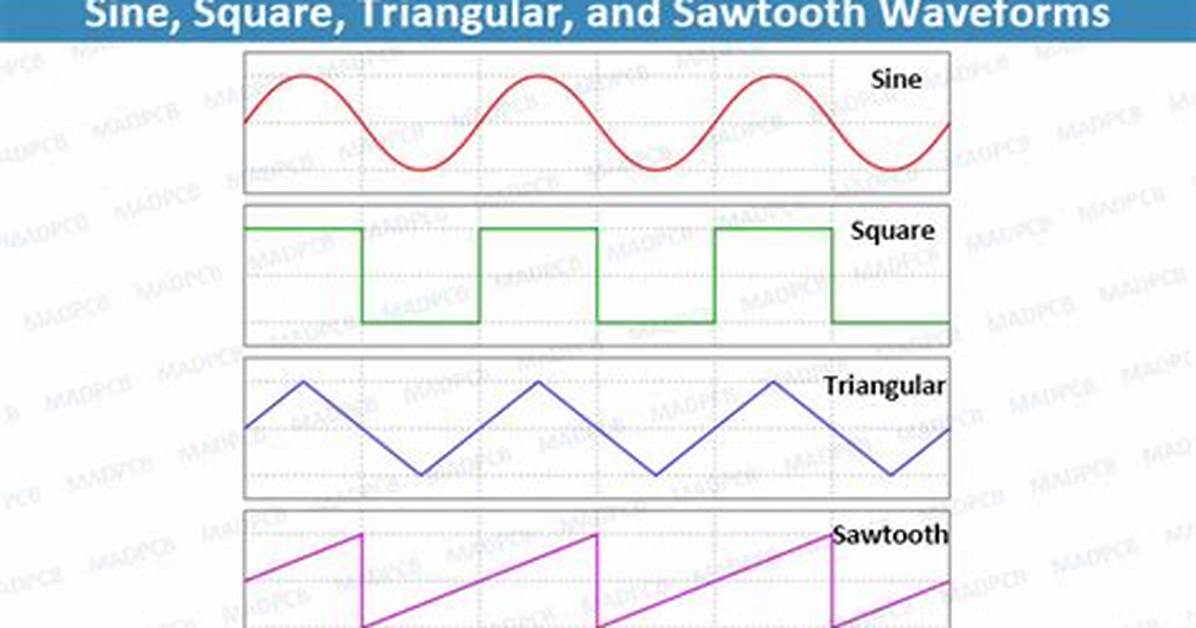

1. How a triangular wave generator is derived from square wave generator? Explanation: The output waveform of the integrator is triangular, if its input is square wave. Therefore, a triangular wave generator can be obtained by connecting an integrator at the output of the square wave generator.

What produces a triangle wave?

Sawtooth and Triangular Oscillators

Triangle waves contain an infinite number of odd harmonics, which are often used in synthesizing musical sounds. ... One of the easiest ways to generate a triangle wave is from a relaxation oscillator generating a square wave and then integrating it.
