The Bourdon pressure gauge works by measuring the amount of change in a coiled or semicircular metal tube by a pressurized fluid inside. This is due to the principle that a flattened tube tends to regain its circular form when pressurized.

How a Bourdon tube is used to measure pressure?

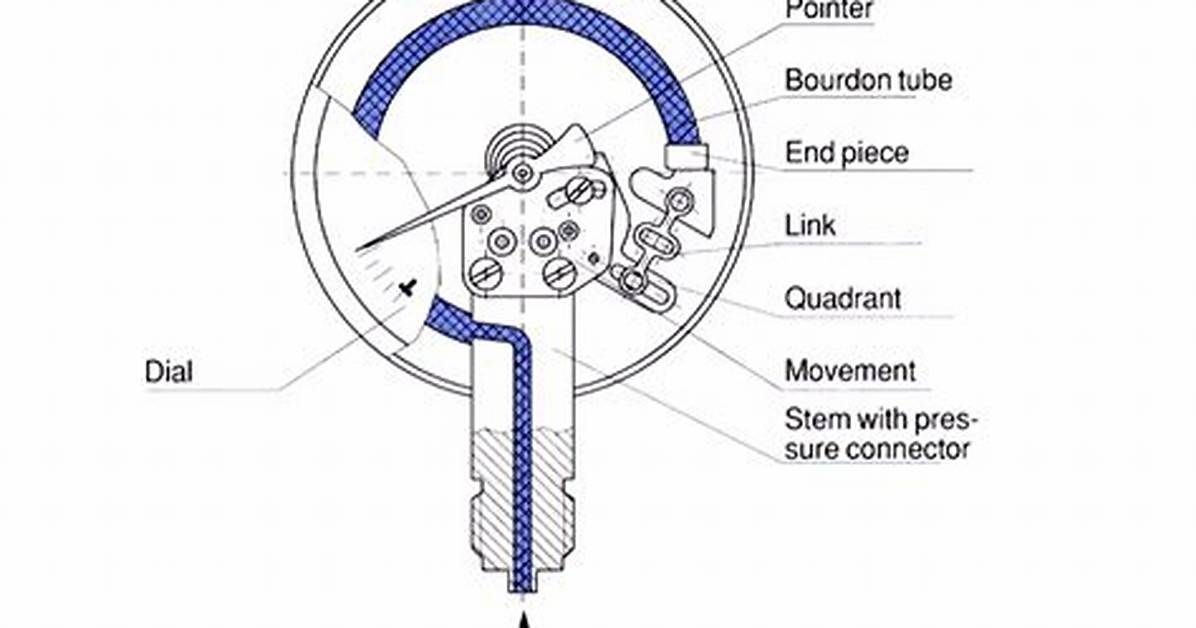

Bourdon tubes are radially formed tubes with an oval cross-section. The pressure of the measuring medium acts on the inside of the tube and produces a motion in the non-clamped end of the tube. This motion is the measure of the pressure and is indicated via the movement.

What is the purpose of Bourdon tube and how does it work?

A bourdon tube pressure gauge is a mechanical pressure measuring instrument that reads the pressure without requiring any electrical power. It is generally used for the measurement of pressure from 0.6 to 7000 bar (8 to 10000 psi).
