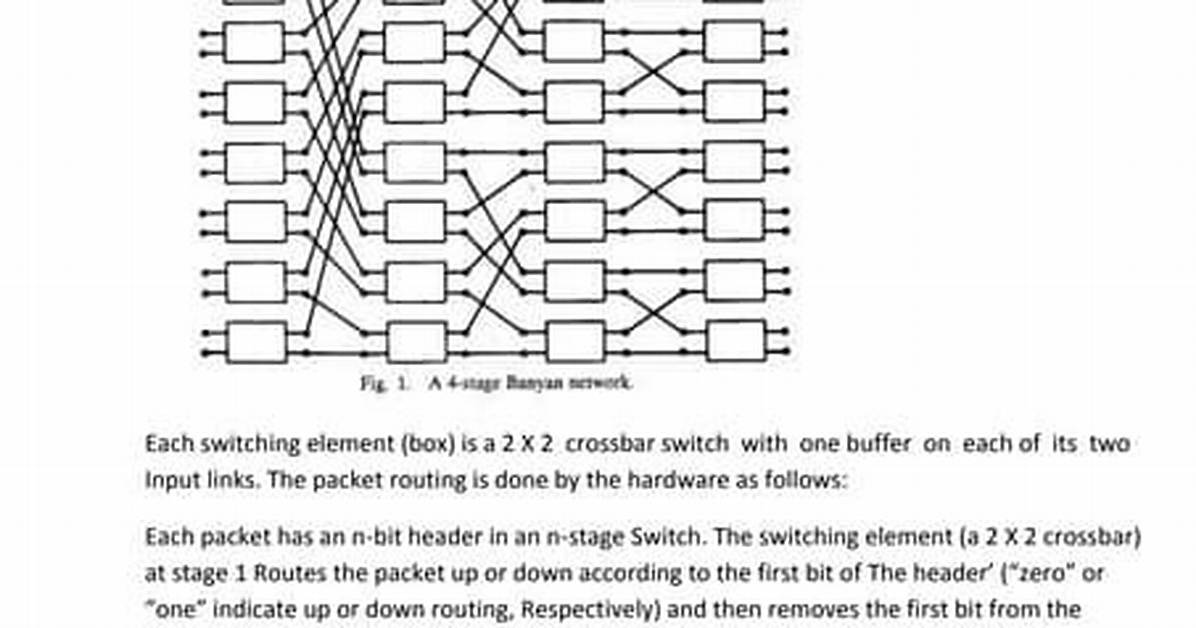

A banyan network is implemented by interconnecting 2×2 switching networks in multiple and recursive stages. The switches are measured by how many stages, and how many up/down sorters and crosspoints they have. Switches often have buffers built-in for faster switching.

What is the purpose of Batcher banyan switch?

The Batcher sorter sorts input packets in the order of their address values. This sorting operation guarantees no blocking in the succeeding Banyan network and presents an efficient way to check contention. The Banyan network distributes contention-free packets to their final destinations.

What is Clos criteria?

Clos networks are defined by three integers n, m, and r. n represents the number of sources which feed into each of r ingress stage crossbar switches. ... Thus, the ingress stage has r switches, each of which has n inputs and m outputs. The middle stage has m switches, each of which has r inputs and r outputs.
